GNA/GVA series

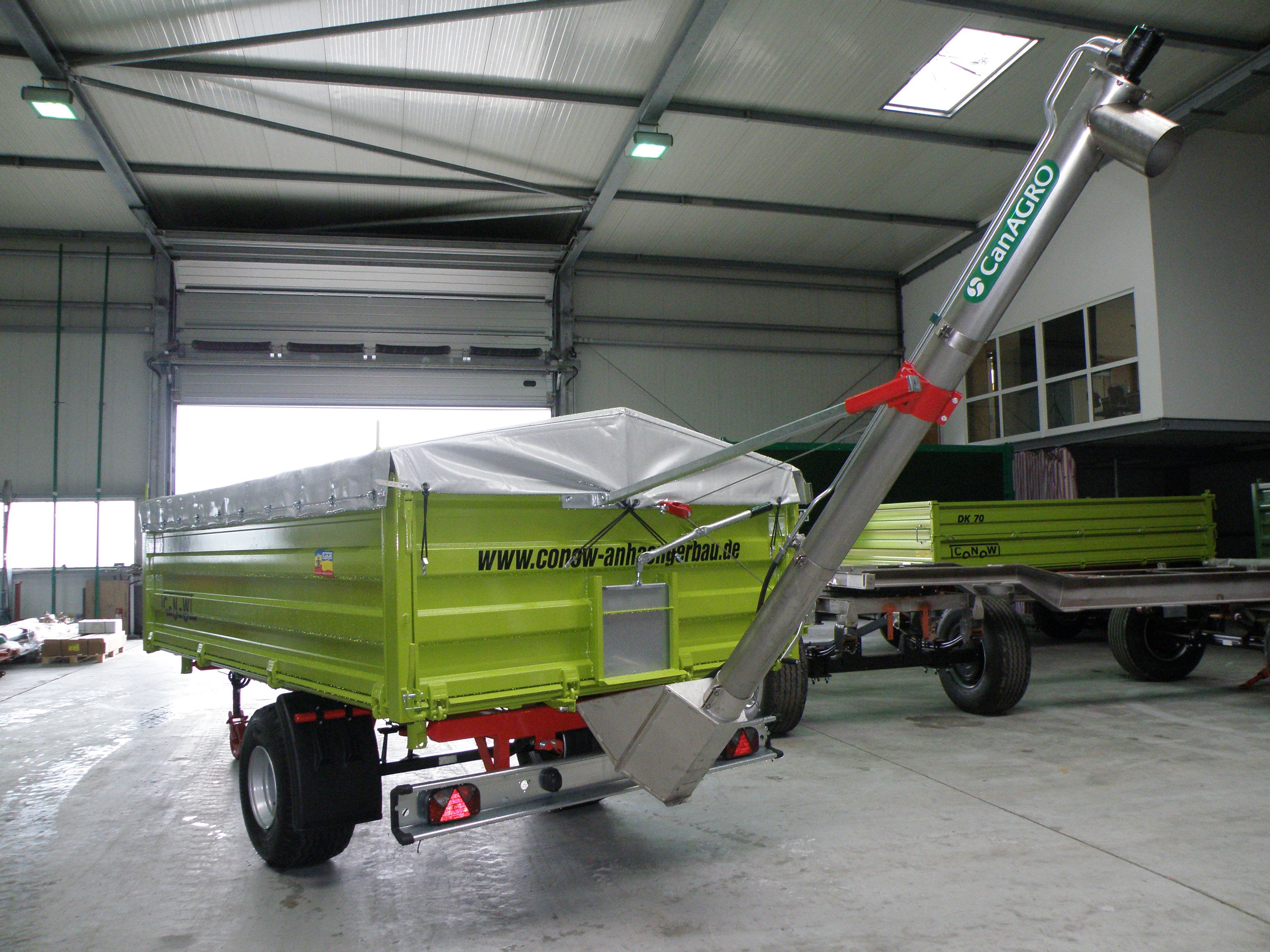

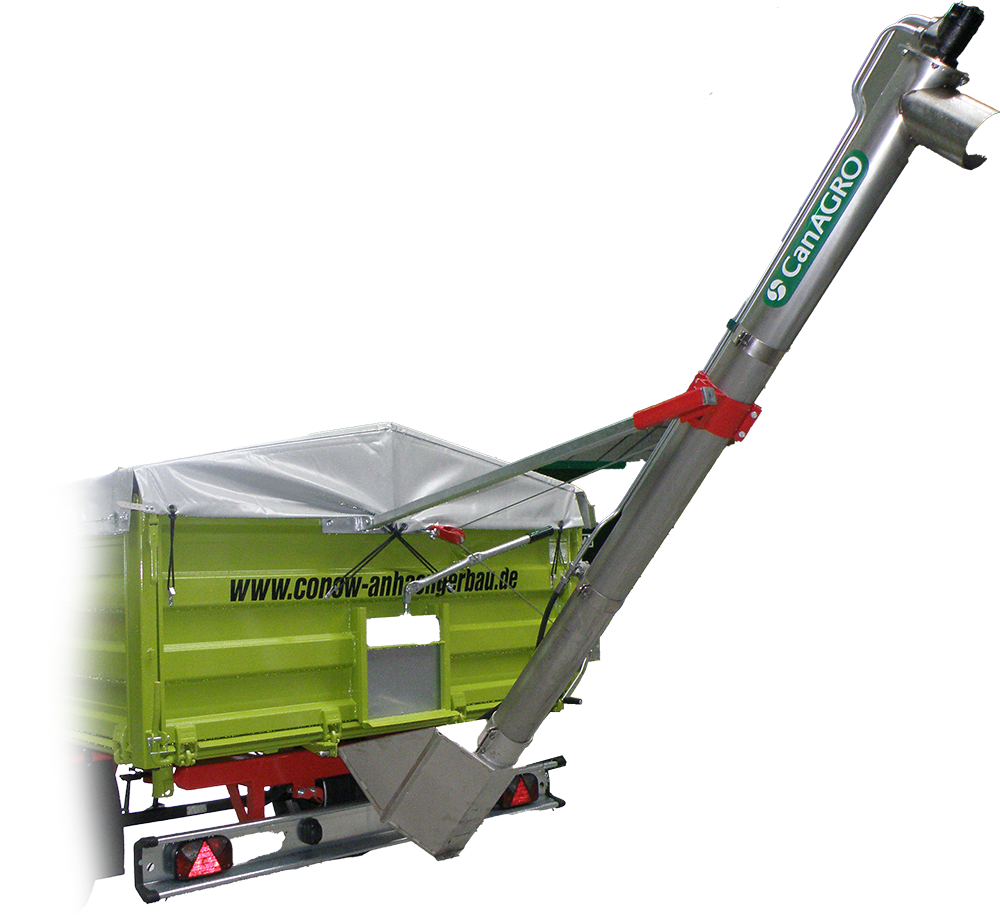

Straight overloading augers with rear discharge - GNA/GVA series
The GNA/GVA series overloading augers are the classic among overloading augers.

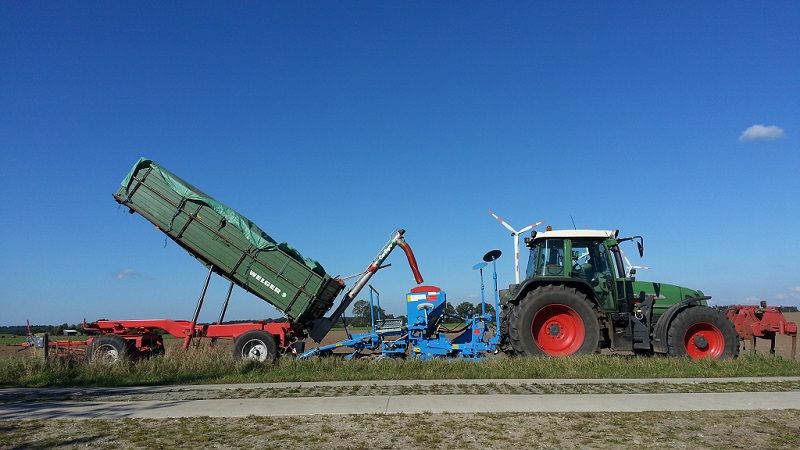

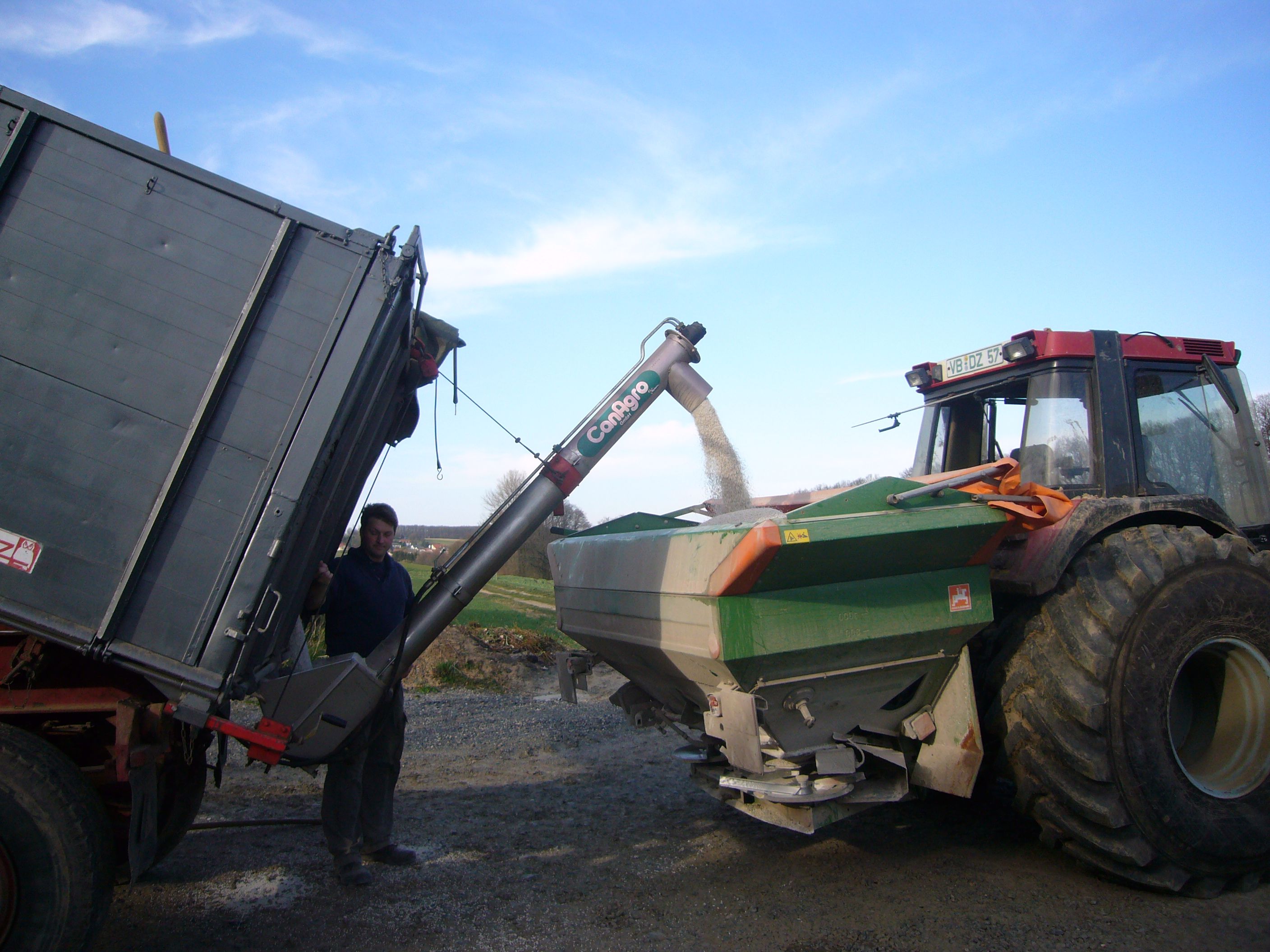

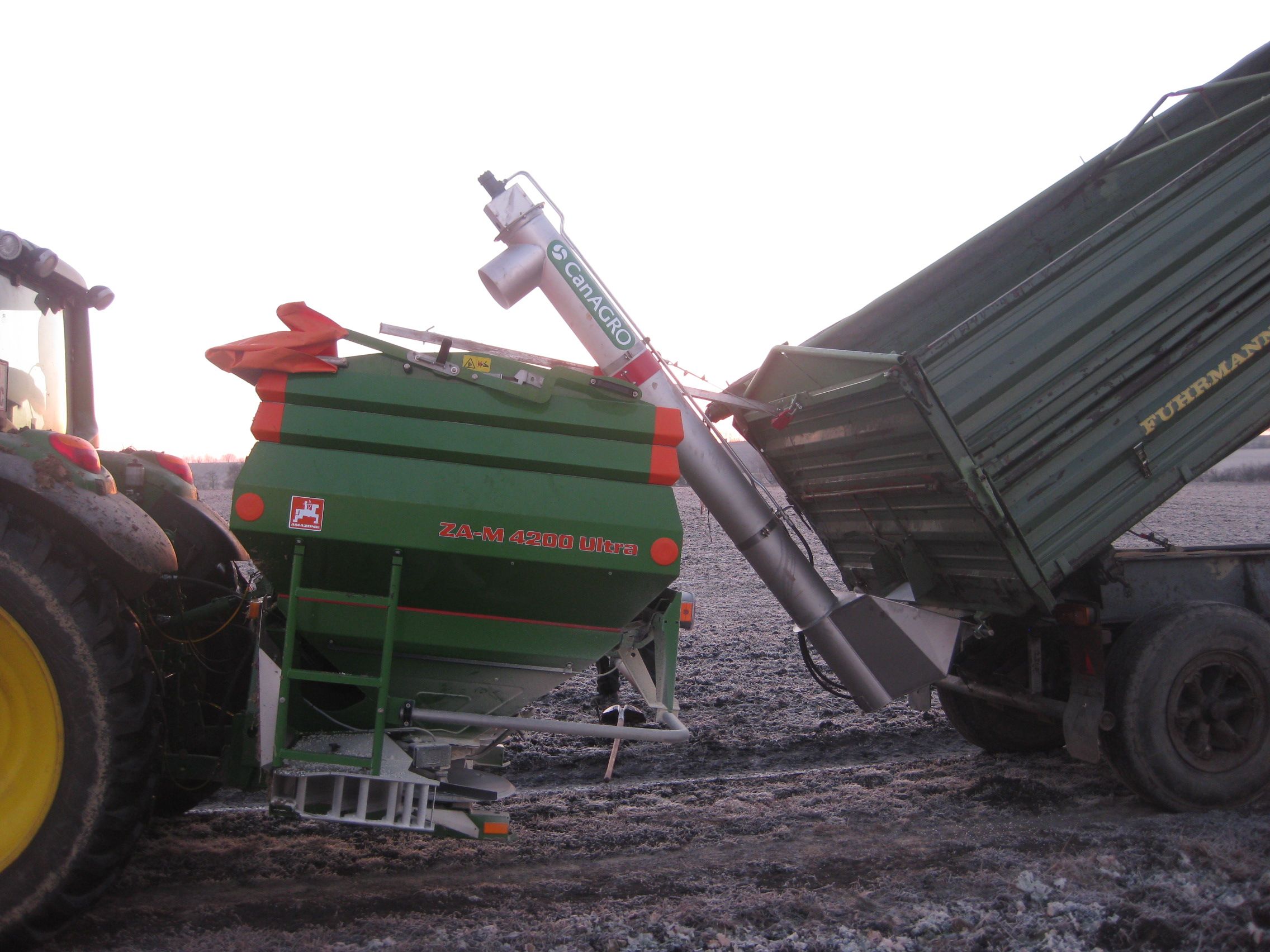

They are primarily used for filling seed drills and fertilizer spreaders with low loading heights and are manufactured by us in galvanized steel (GNA) or stainless steel (GVA) versions.

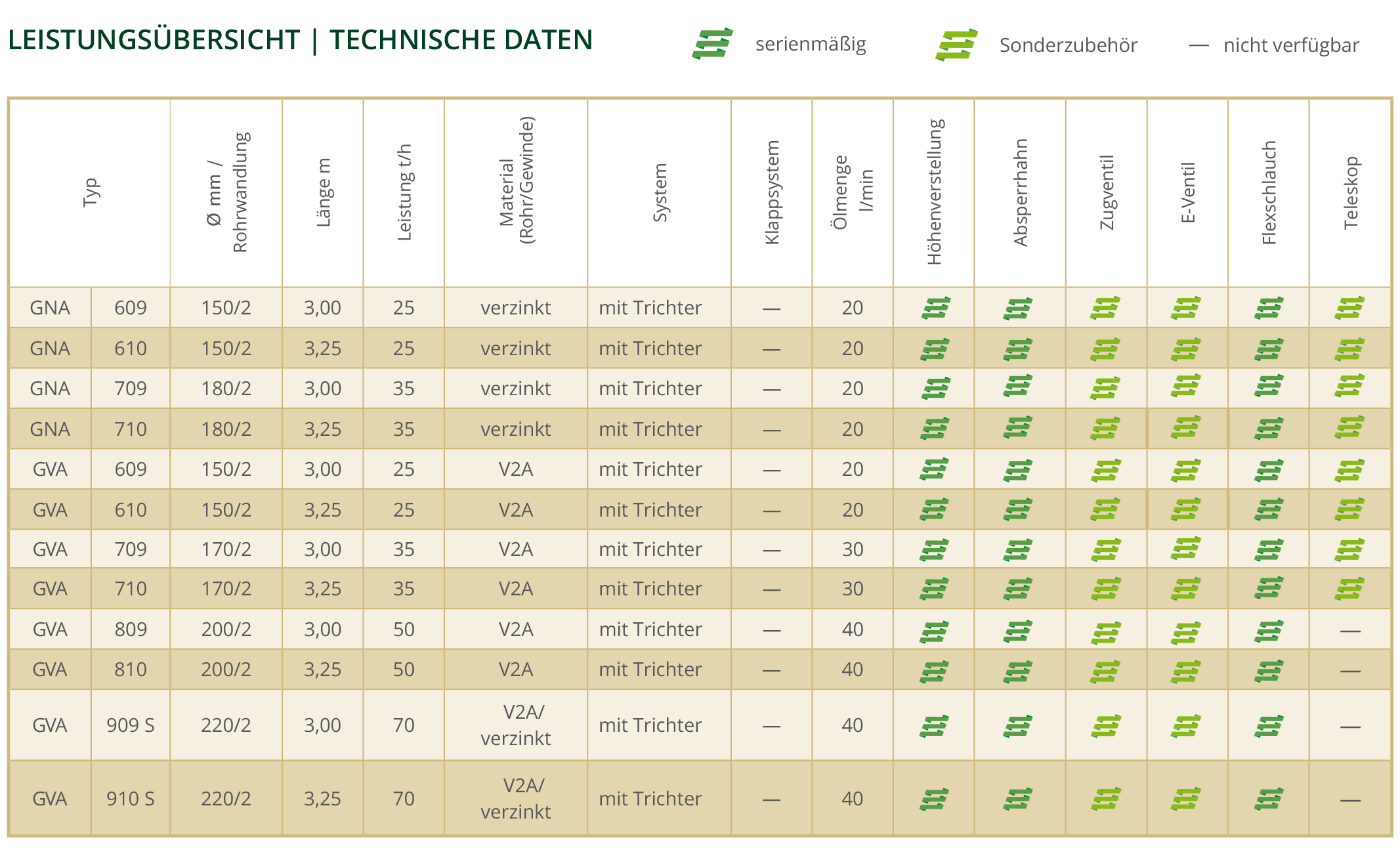

With a conveying capacity of 25 to 70 tons per hour and diameters of 150 to 225 mm, these robust screw conveyors can easily handle even intensive continuous applications. Available in corrosion-resistant stainless steel for demanding environments or in proven steel finishes for standard applications, they offer the optimal solution for a wide variety of overload requirements with standard lengths of 3.0 m and 3.25 m as well as custom special lengths on request. The precise design and proven technology of the GNA/GVA series guarantees reliable operation and minimal maintenance intervals.
Download catalog
Construction snails
Since we have been repeatedly approached by agricultural machinery dealers who are looking for individual solutions for auger screws, we have been manufacturing individual auger screws on seed drills and fertilizer spreaders for many years.
HD Series
For farmers and agricultural businesses, the advantages are obvious: with these overloading augers you have good helpers for everyday work. The flexible application possibilities make this mobile overloading screw a jack-of-all-trades.
UHV series
The UHV series is particularly suitable for customers who want to fill higher seed containers or drawn fertilizer spreaders and still prefer the rear discharge. Despite its compact transport position, the UHV series enables a long range.
DF series
Side-folding transfer screws are true all-rounder. They reach transfer heights of 4.50m even with an extremely tilted trailer.
DHV series
The DHV series overloading augers offer you an impressive range and impress with their hydraulic folding and the...
