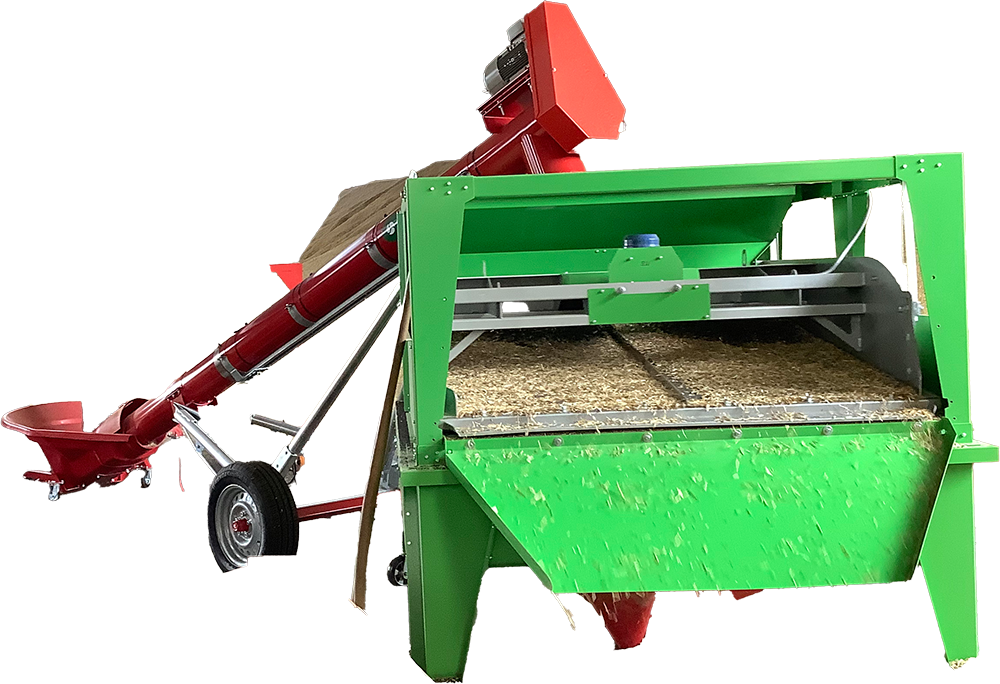

Vibration cleaner

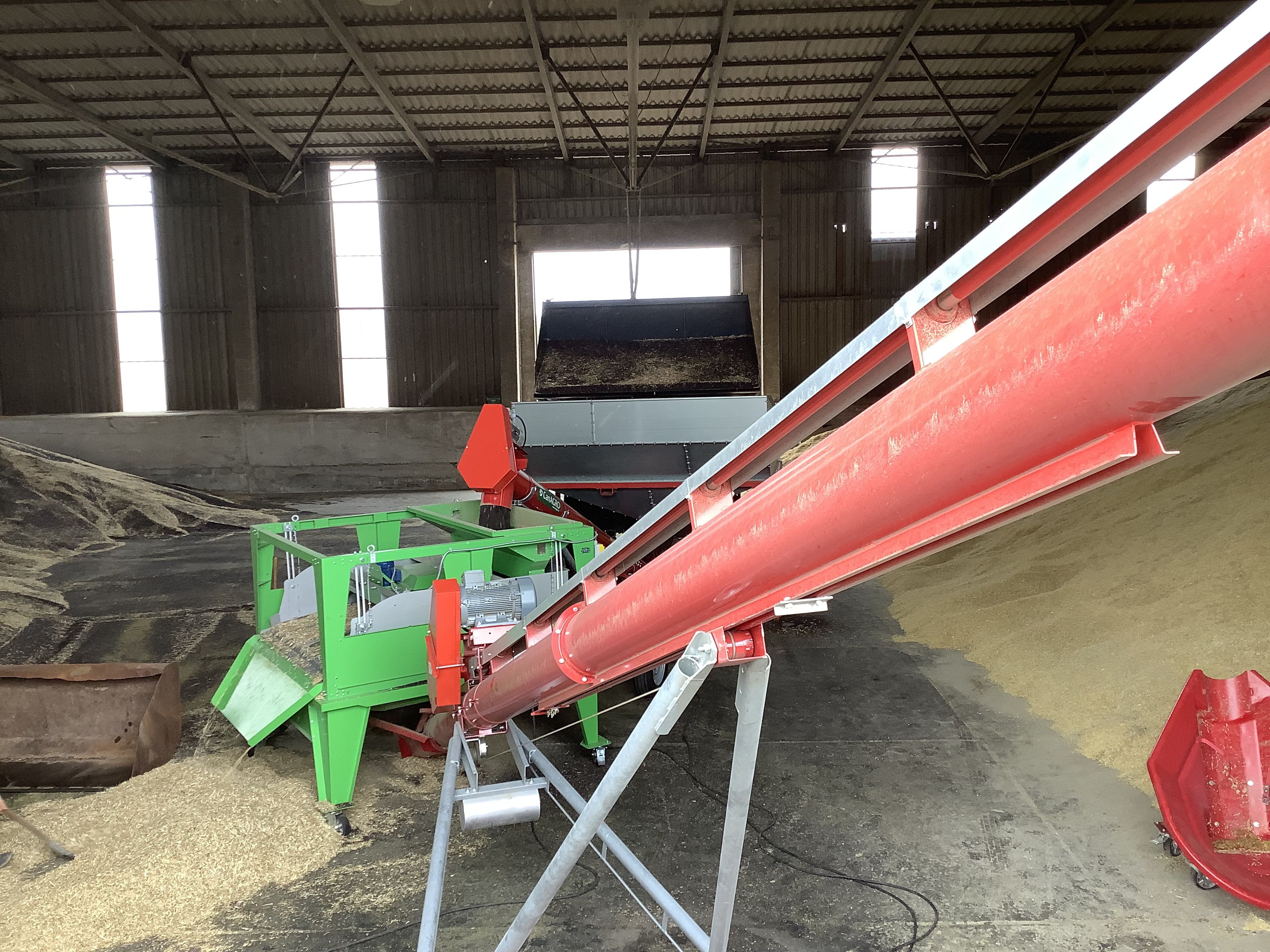

We supply screen cleaners in performance classes of 10 t/h, 15 t/h and 25 t/h for the separation of coarse and fine particles. The device operates with two counter-rotating sieve boxes, is maintenance-free via a ball system and operates with very low vibration.

Vibration cleaner

Inexpensive complete cleaning or preparation of your own seeds - sieve cleaner

Our vibration cleaners offer the perfect combination of economy and efficiency for the reliable separation of coarse and fine parts. As a cost-effective alternative to complex sieve cleaners, these compact, mobile systems deliver impressive cleaning performance at significantly reduced purchase costs. The flexible design not only allows for quick use at different locations, but also impresses with lightning-fast sieve changes and diverse adjustment options for a wide variety of material requirements. This mobility and flexibility make them the ideal solution for businesses that need efficient, adaptable material cleaning without large investments. With this intelligent simplification of proven sieving technology, you get exactly the functionality you need – at an unbeatable price-performance ratio.

Technical data

Power: 10 t/h, 15 t/h, 25 t/h
Inlet and outlet extraction
All sieves are interchangeable
two outlets for coarse parts
a set of sieves of your choice

OSC vibrating screen - 1 screen insert.

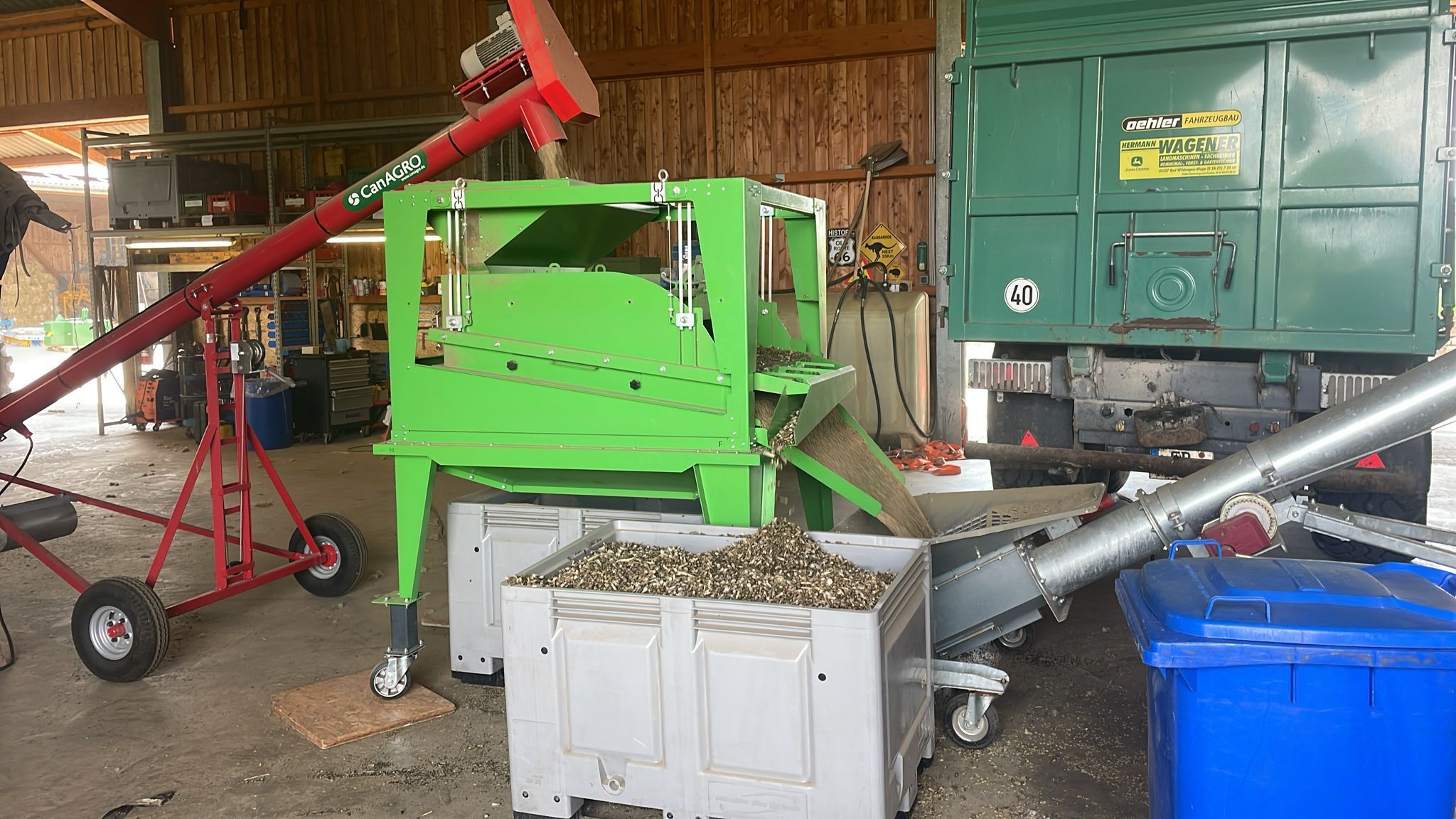

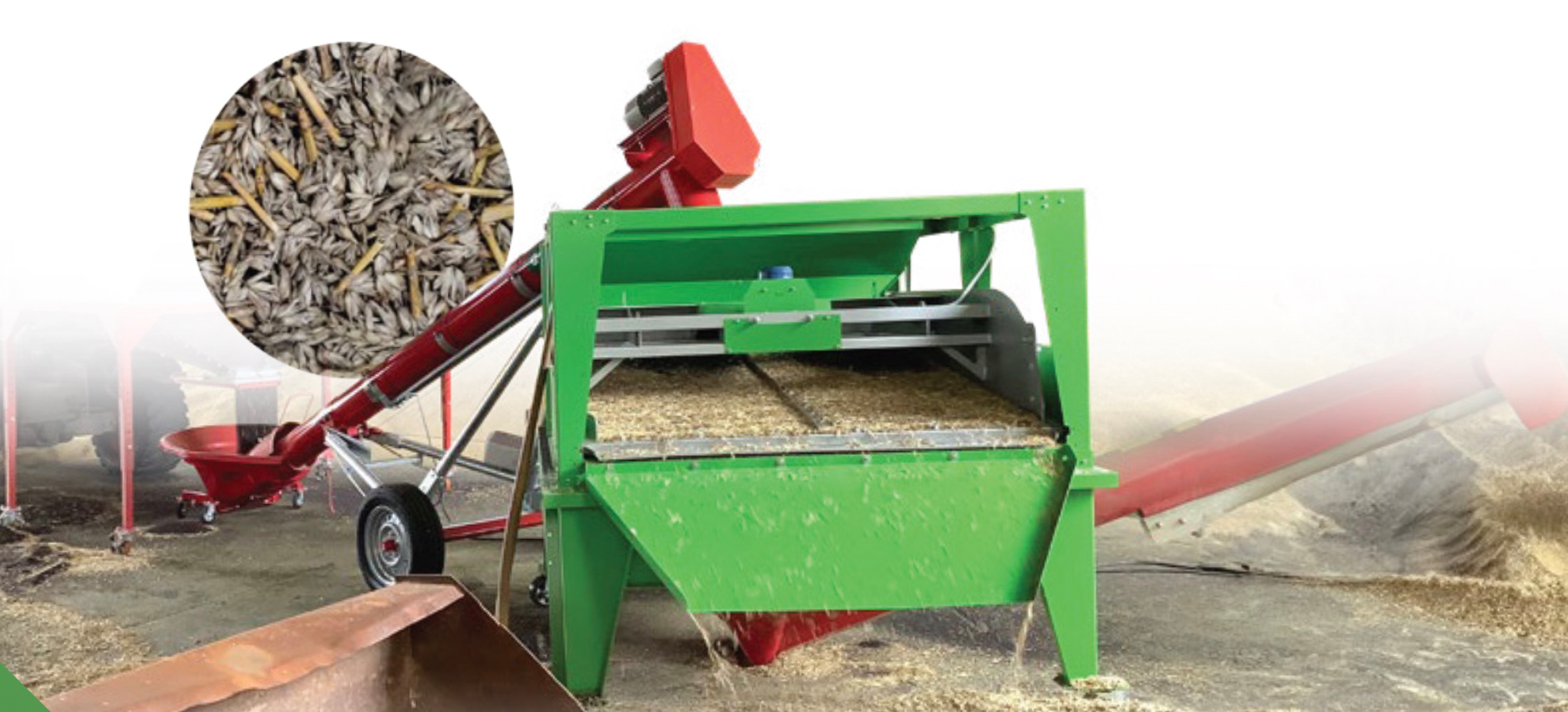

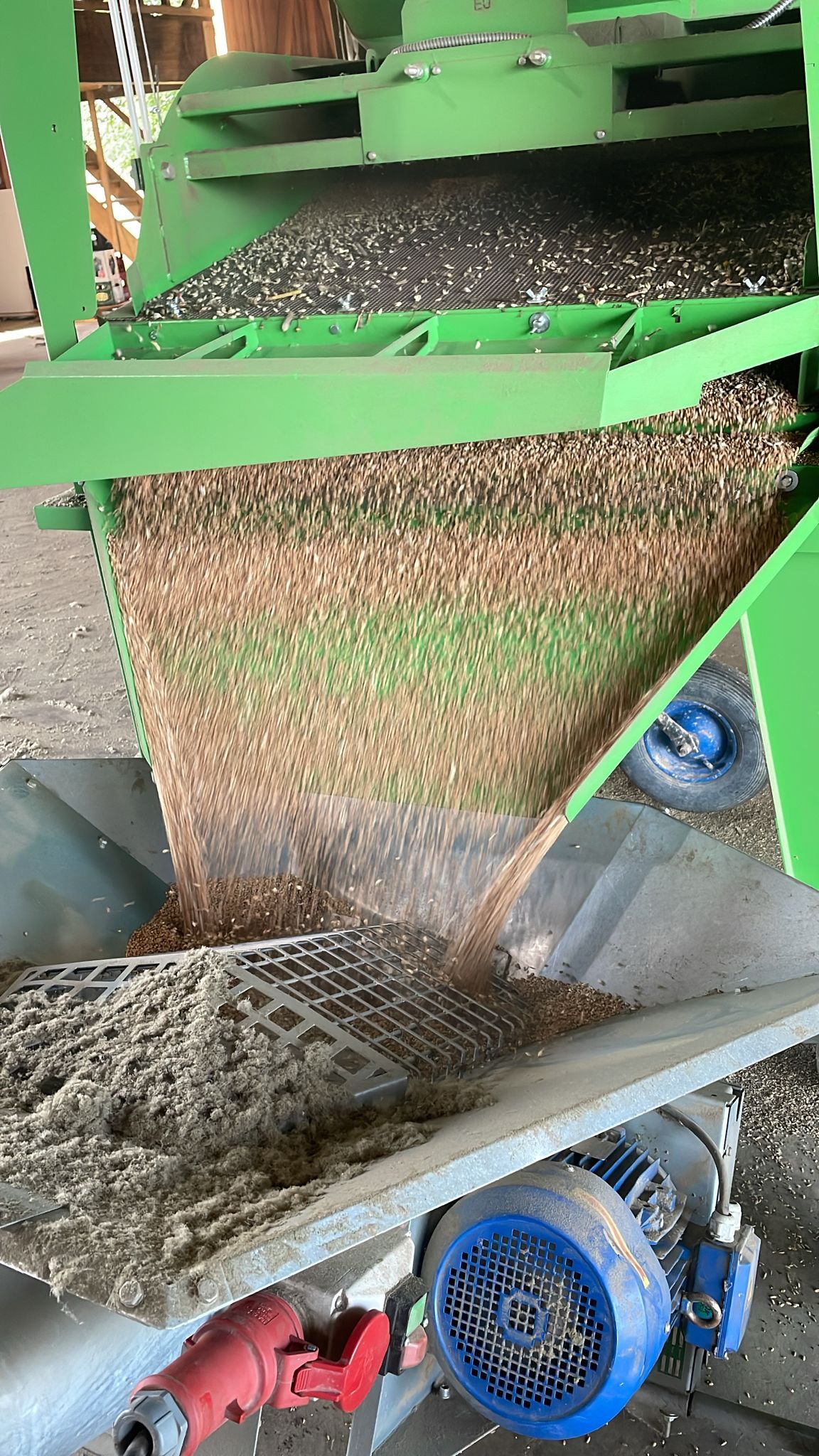

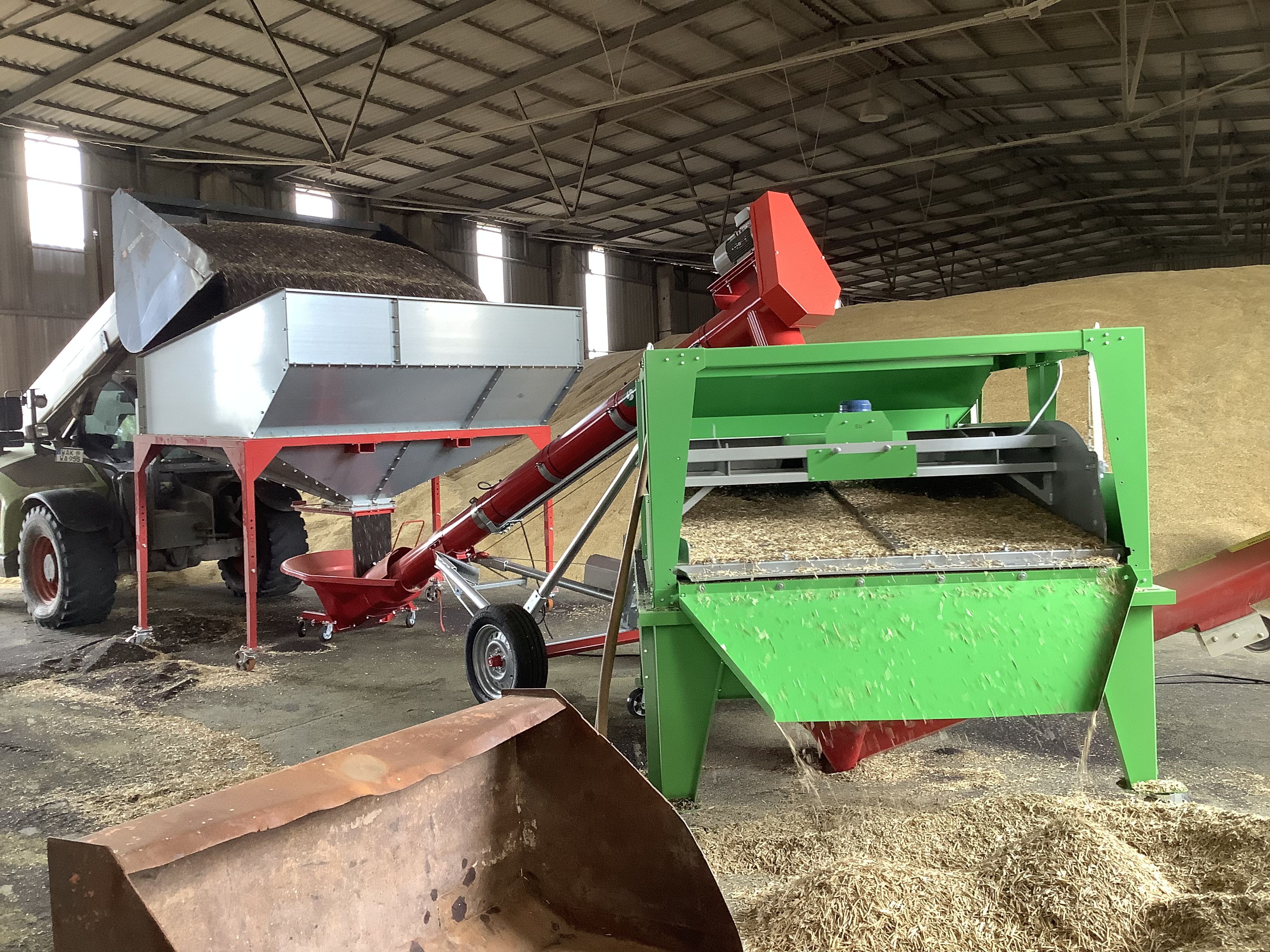

The OSC model is a grain pre-cleaner with ONE vibrating screen, for cleaning or pre-cleaning larger impurities such as stones, soil, straw, ears, from the starting material.

The OSC model is primarily suitable for pre-cleaning. The OSC series is based on the directed vibration of the sieve, which ensures the sieving of the granular mass and the separation of sliding verunrei- ni- gungen by a special chute. Productivity depends on the size of the sieve area.

The OSC series can be built as a stationary unit (OSC), but can also be used on a mobile frame (OSCS).

ADVANTAGES OF THE OSC MODEL SERIES:

effective pre-cleaning
No grain damage during operation
Screen cleaning using rubber balls during OSC/OSCS operation
exceptional reliability and cost-effectiveness
Components of the world market leaders „Schneider“, „Danfoss“ and others

Brochure – Vibration Cleaner

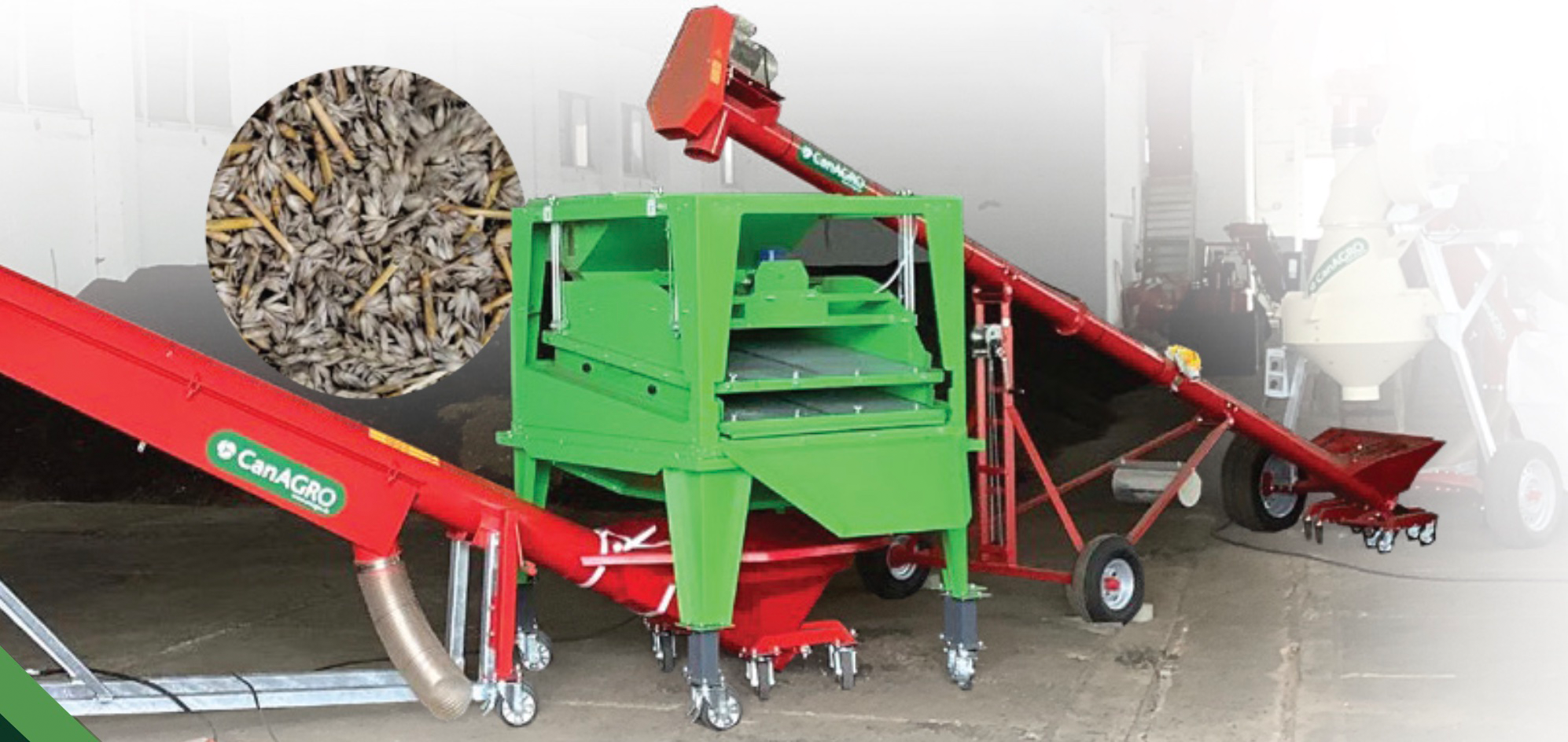

DSC vibrating screen - 2 screen inserts.

The DSC model is a two-axis high-performance machine with two vibrating screens for advanced pre-cleaning of the grain types and seeds from large and small impurities. The first sieve with larger holes separates large impurities from the starting material – straw, spikelets, stones, soil pieces, etc., which are drained to the side by means of a chute.

Conversely, the second sieve with smaller holes filters out light contaminants such as dust, chaff, pieces of straw, grain, etc., while the granular mass slides through the front chute. DSCs are used as independent units.

ADVANTAGES OF THE DSC MODEL SERIES:

Effective pre-cleaning or complete cleaning of coarse and fine parts
No grain damage during operation
Screen cleaning using rubber balls during OSC/OSCS operation
exceptional reliability and cost-effectiveness
Components of the world market leaders „Schneider“, „Danfoss“ and others

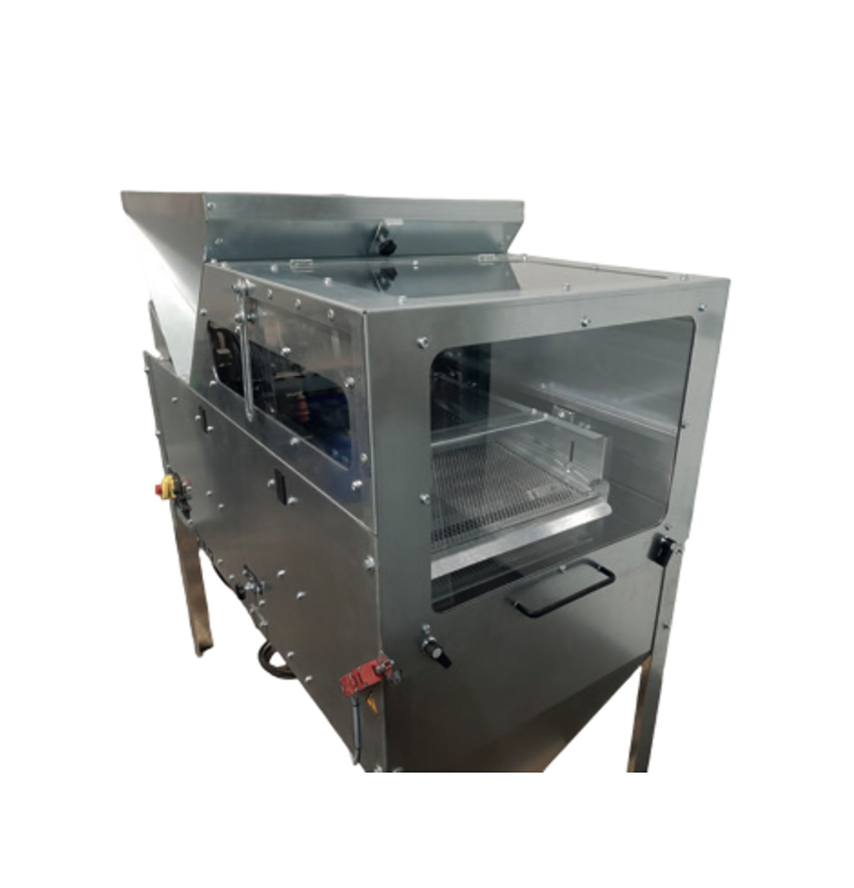

DOUBLE SIEVE CLEANER WITH EXTRACTION FUNCTION FOR SEED PROCESSING AT THE FARM

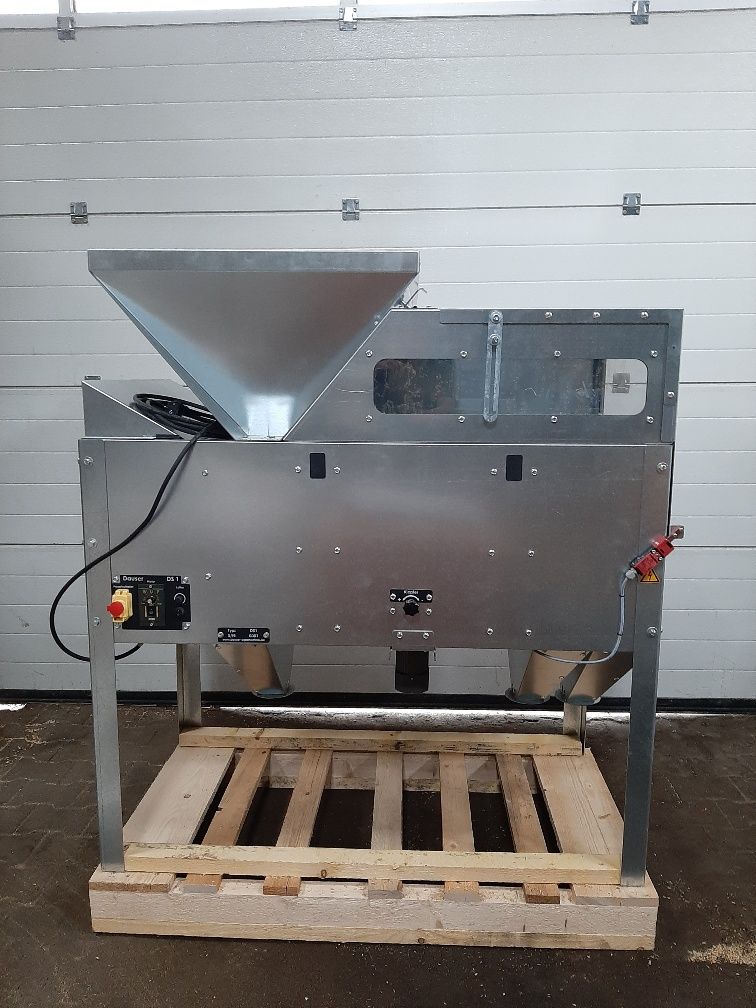

The DS 1 grain cleaner is a system for cleaning grain, fine seeds and oilseeds. All grains that differ in grain size can be read out in this way.

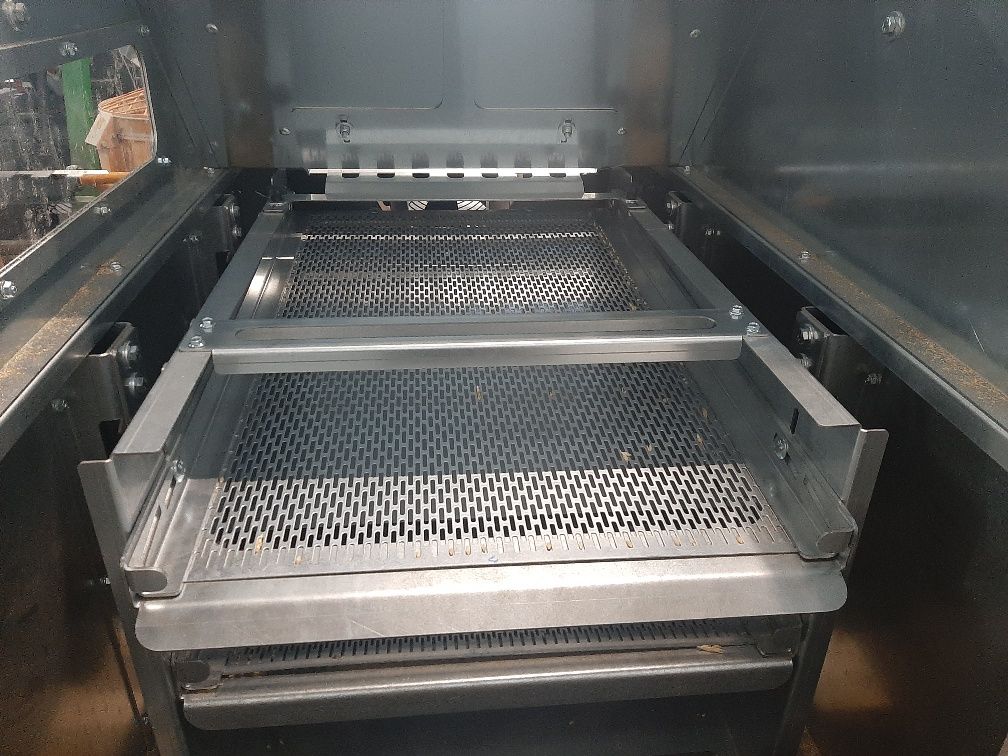

The cleaner separates into 3 sizes:
Too small/dust, cleaned goods and too large.

On the inlet side, the DS 1 cleaner is equipped with an inlet funnel. The 3 outlets are for the 3 cleaning fractions.

Also suitable for cleaning fine seeds and oilseeds
Designed for hourly output from 20 to max. 1500 kg/h, depending on the crop.
Compact machine
Excellent value for money

GRAIN CLEANER CONSTRUCTION

Sheet metal construction made of galvanized laser parts
Designed for a maximum of 20-1500 kg/h, depending on the culture
Main switch with on & off function/ Emergency stop
Power supply cable with Schuko connector CEE7/4 • 90W 230V 50Hz sieve motor, adjustable speed
Blower motor diameter 200mm 230V 2A 50Hz
Max. sound power 71dBA
Cleaner dimensions: 135 x 75 x 147 cm
Dead weight approx. 155kg

Download catalog

Drum cleaner

Mobile pre-cleaning drum cleaner. Technical specifications. Performance: up to 260 t/h. Replaceable perforated plates. Variable drum speed. Manual drum tilt adjustment...
