Ventilation rockets

CANAGRO ventilation rockets ensure optimal ventilation of stored grain and other bulk materials. They are placed directly into the stored goods and allow for even air circulation to reduce moisture and ensure the long-term quality of the harvest. Robust, efficient and easy to use.

Ventilation rockets

For the ventilation of grain and other bulk materials - ventilation rockets

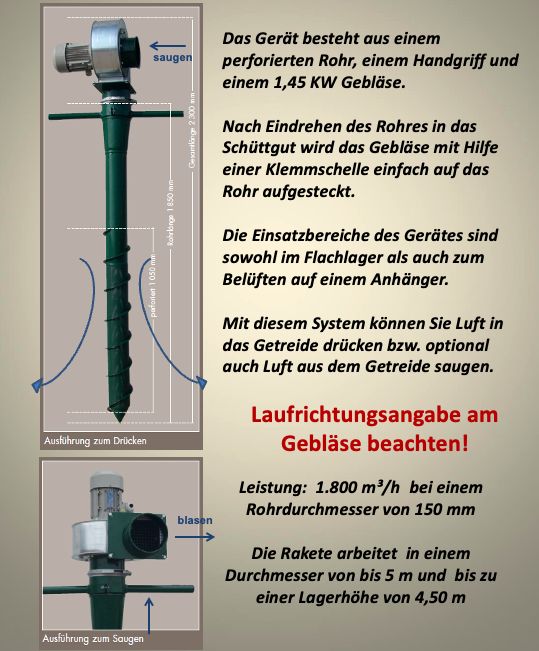

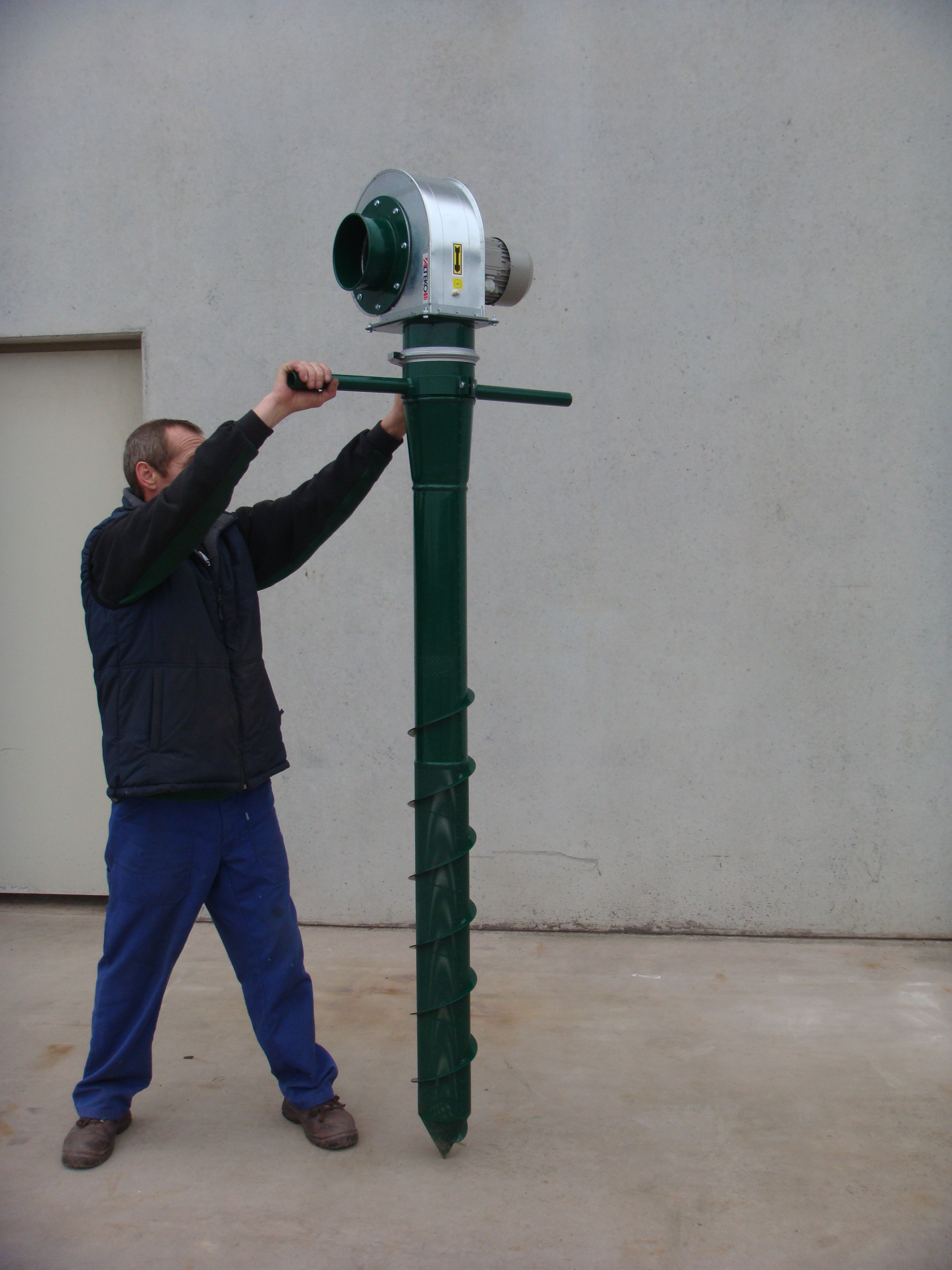

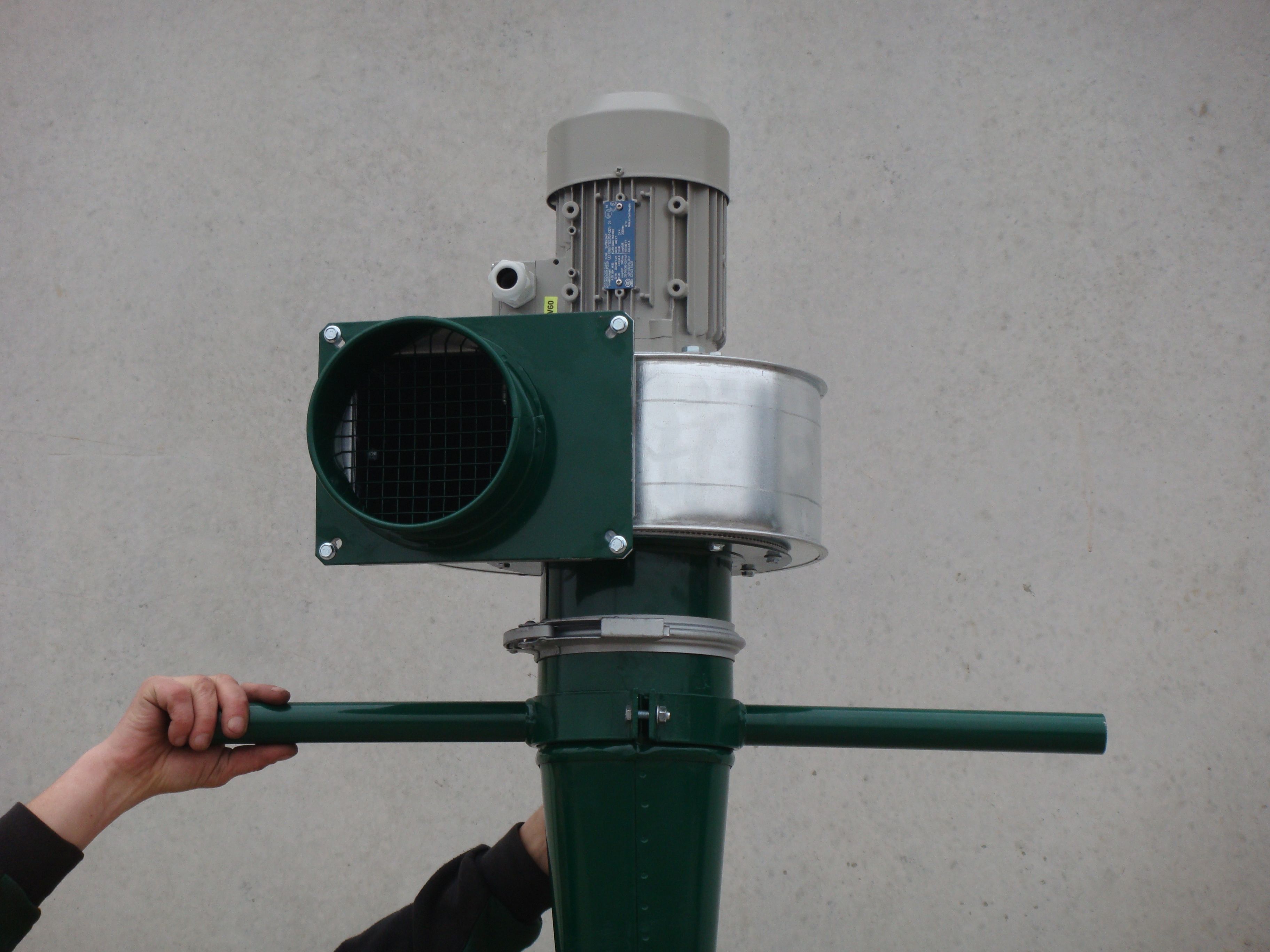

The device consists of a perforated tube, a handle and a 1.45 kW blower. After the pipe is screwed into the bulk material, the blower is simply attached to the pipe using a clamping clamp.

The device is used both in flat bearings and for ventilation on a trailer.

This system allows you to push air into the grain or, optionally, to suck it out.

Technical data

Air output (with a pipe diameter
of 125 mm): 1,800 m3/h
Blower: 1.45 kW
max. Radius per rocket: 4-5 m
easy handling
flexibly usable
low investment and operating costs
Application area: Flat bearings up to a bearing height of 4 m

Efficient ventilation of bulk materials – Ventilation rockets

The ventilation rocket ensures optimal air circulation during the storage of grain and other bulk materials. It helps to drain moisture and stabilize storage, thereby ensuring the long-term quality and durability of the harvested crop. Ideal for even ventilation of large quantities.
