DF series - Overloading augers

Image description text

The DF series represents a broad and versatile product range from CANAGRO GmbH and offers you an exceptionally high range of designs for almost every application area. With this comprehensive series, we have pooled all our know-how and years of experience into a product portfolio that leaves nothing to be desired.

DF series - Overloading augers

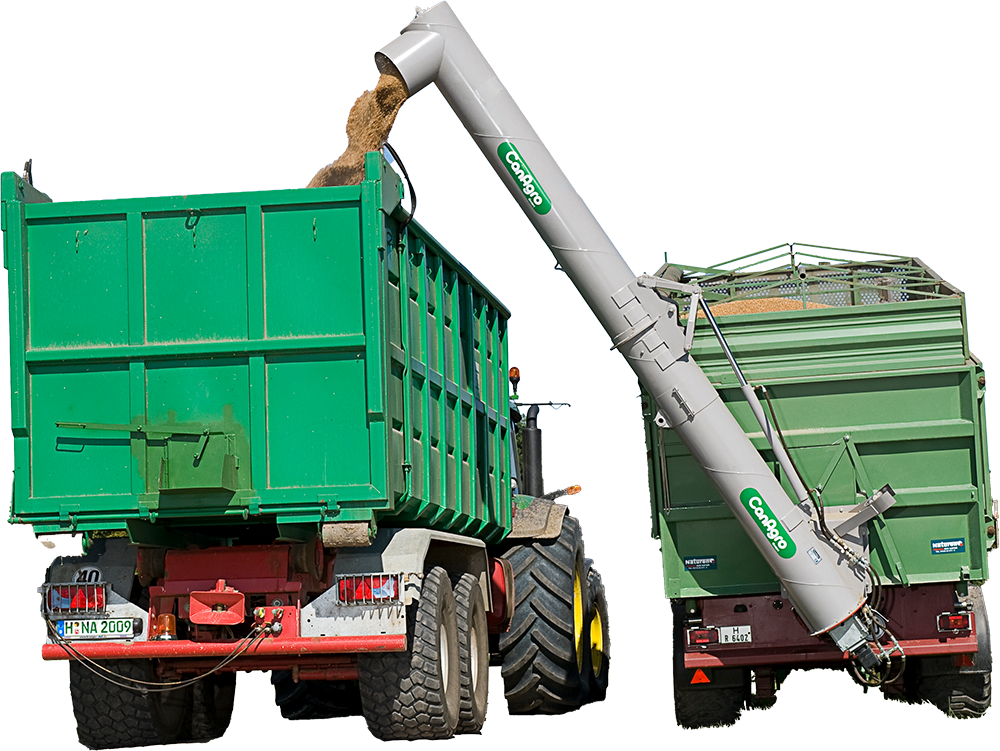

Side overloading augers with maximum overloading height - DF series

Side-folding overloading augers are true jack-of-all-trades. Even with an extremely tilted trailer, they reach loading heights of 4.50 m. The advantages of this design lie in the large handover heights, the good range and the compact transport position. Attaching and changing the worm gear from trailer to trailer is somewhat less complex with the other types, but due to the compact transport position, this series is ideal for driving longer distances. Compared to straight overloading screws – rigid (GNA/GVA) or foldable (UHV) –, the DF screw has a more effective transfer height when tilted.


This series ensures (depending on the screw length) maximum loading heights (e.g. for overloading onto trucks during harvesting), essential lateral reach (for loading seed drills) and an extremely compact transport position when folded for long distances.

Details

  • foldable on the side

  • Overloading heights of up to 4.50m

  • Compact transport position ideal for driving longer distances

  • essential lateral reach

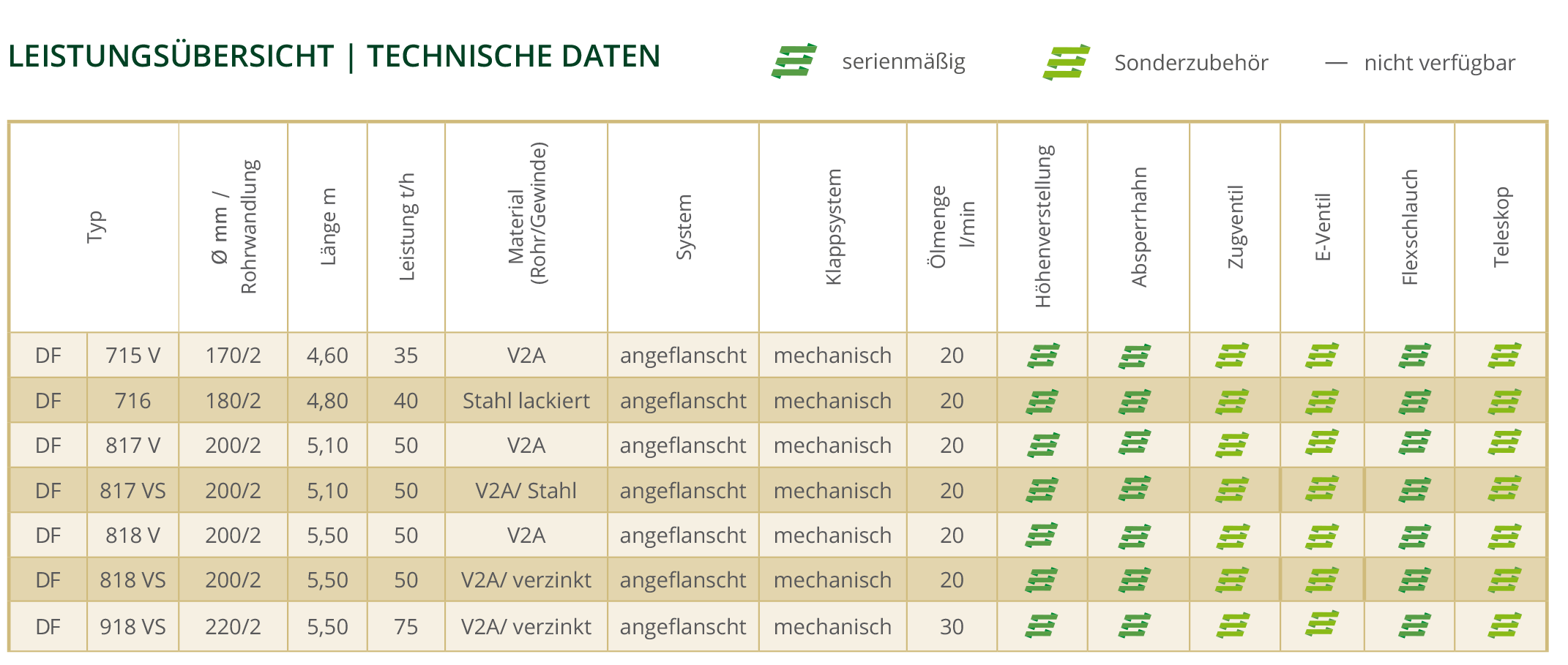

DF series - mechanically foldable & manually height-adjustable

  • mechanical folding system
    (by hand)

  • Height adjustment via winch

  • Reinforced double helix in the catchment area, standing on a handle

  • Versions: completely standard steel painted/galvanized (Series S),

  • Combination of stainless steel outer tube with galvanized steel coil (Series VS), stainless steel complete (Series V)

  • Hydraulic motor

Image description text

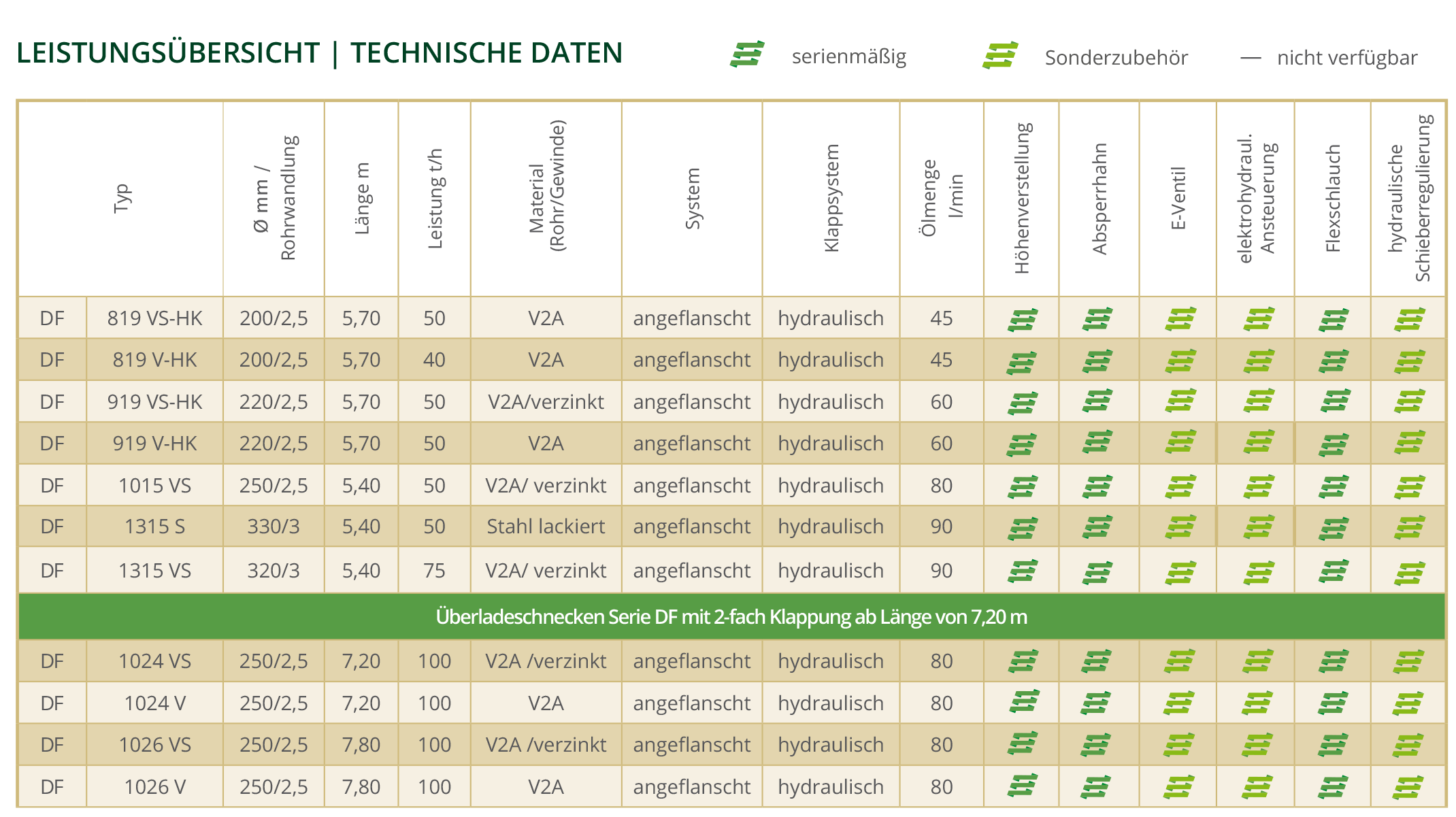

DF series - hydraulically foldable & hydraulically height-adjustable

  • Combination of stainless steel outer tube with galvanized steel helix (Series VS)

  • Complete stainless steel (Series V)

  • Hydraulically foldable with hydraulic cylinder. Height adjustment via hydraulic cylinder

  • in series with reinforced double helix in the catchment area, standing on the handle

  • Drive via hydraulic motor

  • With double folding using an eccentric system, pipe diameter of 250 mm

Image description text

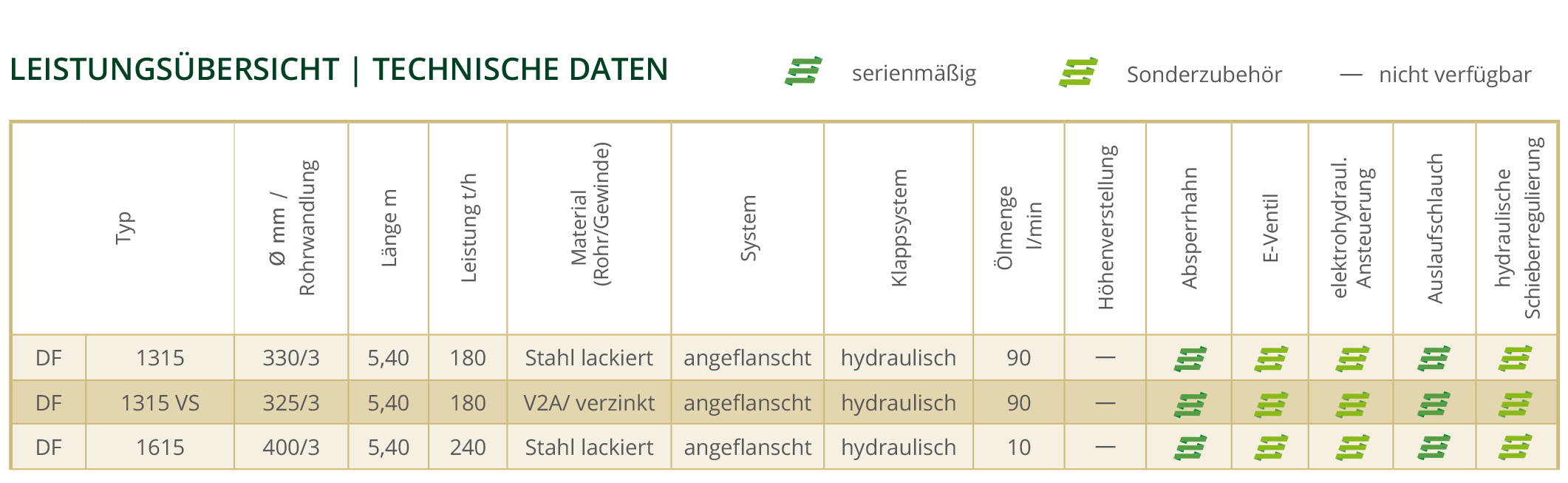

DF series - hydraulically foldable & not height-adjustable

  • hydraulic folding system without lateral height adjustment

    foldable with hydraulic cylinder

  • painted in standard steel as a version
    DF 1315 also in stainless steel

  • 1 set of hydraulic motor attachments with shut-off valve

  • hydraulically swiveling discharge chute

  • Reversing camera at the screw outlet

  • hydraulic quantity control in the inlet

  • electro-hydraulic control unit


ADVANTAGES

  • large handover heights

  • high performance

  • Overload trolley replacement

Image description text
Image description text

Download catalog

Image description text
Image description text
Image description text
Image description text
Image description text
Image description text
Image description text

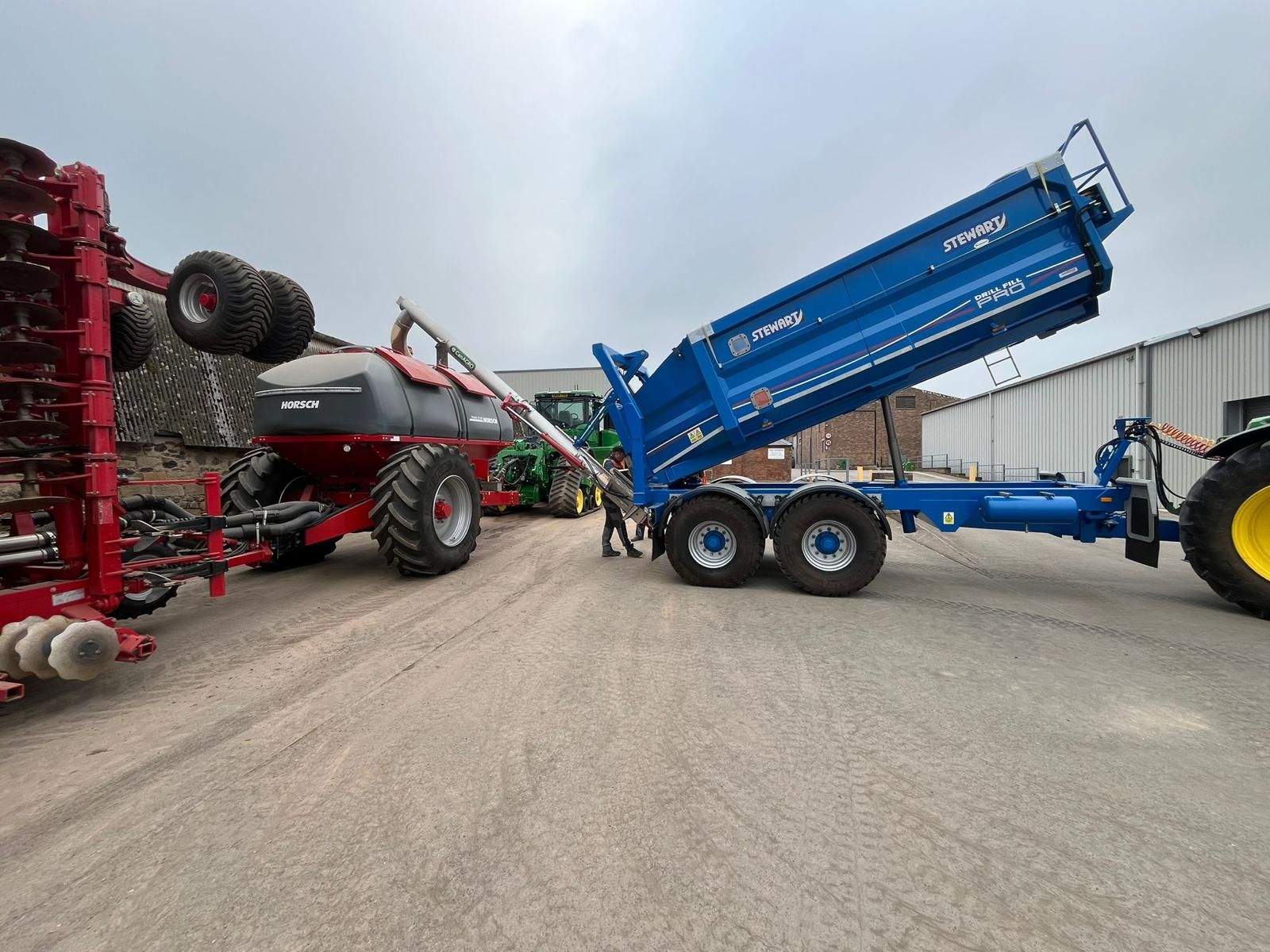

UHV series

The UHV series is particularly suitable for customers who want to fill higher seed hopper or drawn fertilizer spreaders and still prefer the rear discharge.

Image description text

GNA/GVA series

The GNA/GVA series overloading augers are the classic among overloading augers. They will primarily be used for filling seed drills...

Image description text

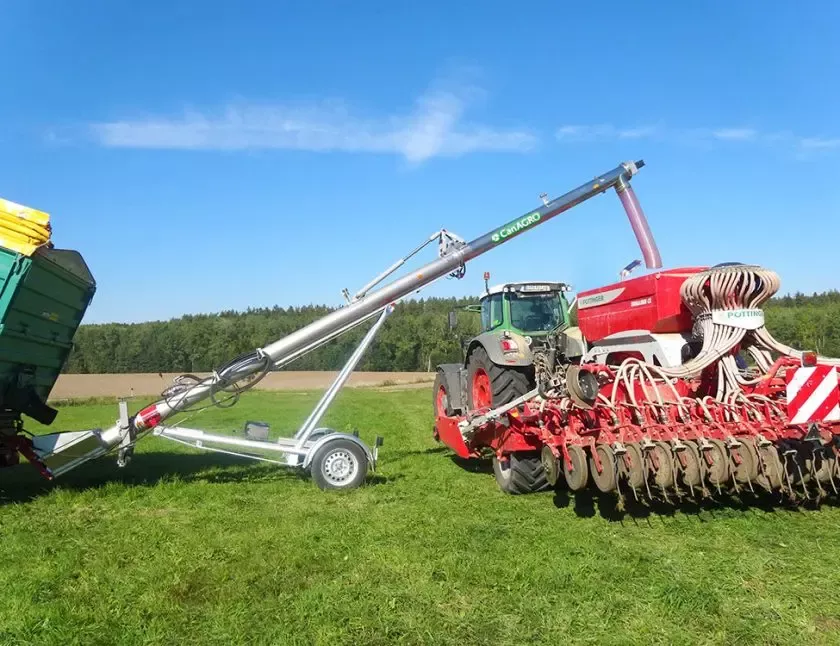

HD Series
