Over the years, we have established ourselves as a specialist in the field of mobile conveyor technology. Our screw conveyors have been continuously improved over the years and adapted to the requirements of the German market. To make everyday life easier, a wide variety of accessories are available for our screw conveyors.

High-performance screw conveyors with chassis

Product description: High-performance screw conveyors with chassis - EMD series

Our high-performance EMD series screw conveyors are the perfect solution for the flexible and efficient transport of bulk materials. As a specialist in mobile conveying technology, we have continuously developed our screw conveyors and adapted them to the requirements of the German market.

With conveying capacities of 25 to 120 tons per hour, pipe lengths of 7.80 to 21.30 meters and conveying heights up to 14.50 meters, our screw conveyors offer impressive efficiency for diverse applications.


The robust chassis of our EMD series is characterized by its flexibility and impact force and is also suitable for inter-company use. The reset chassis allows for more protrusion for optimal feeding of flat bearings, while the generous clearance in the intake and exhaust areas ensures smooth material feeding. The stepless adjustability of the conveying height via a robust winch ensures precise adaptation to the respective requirements.

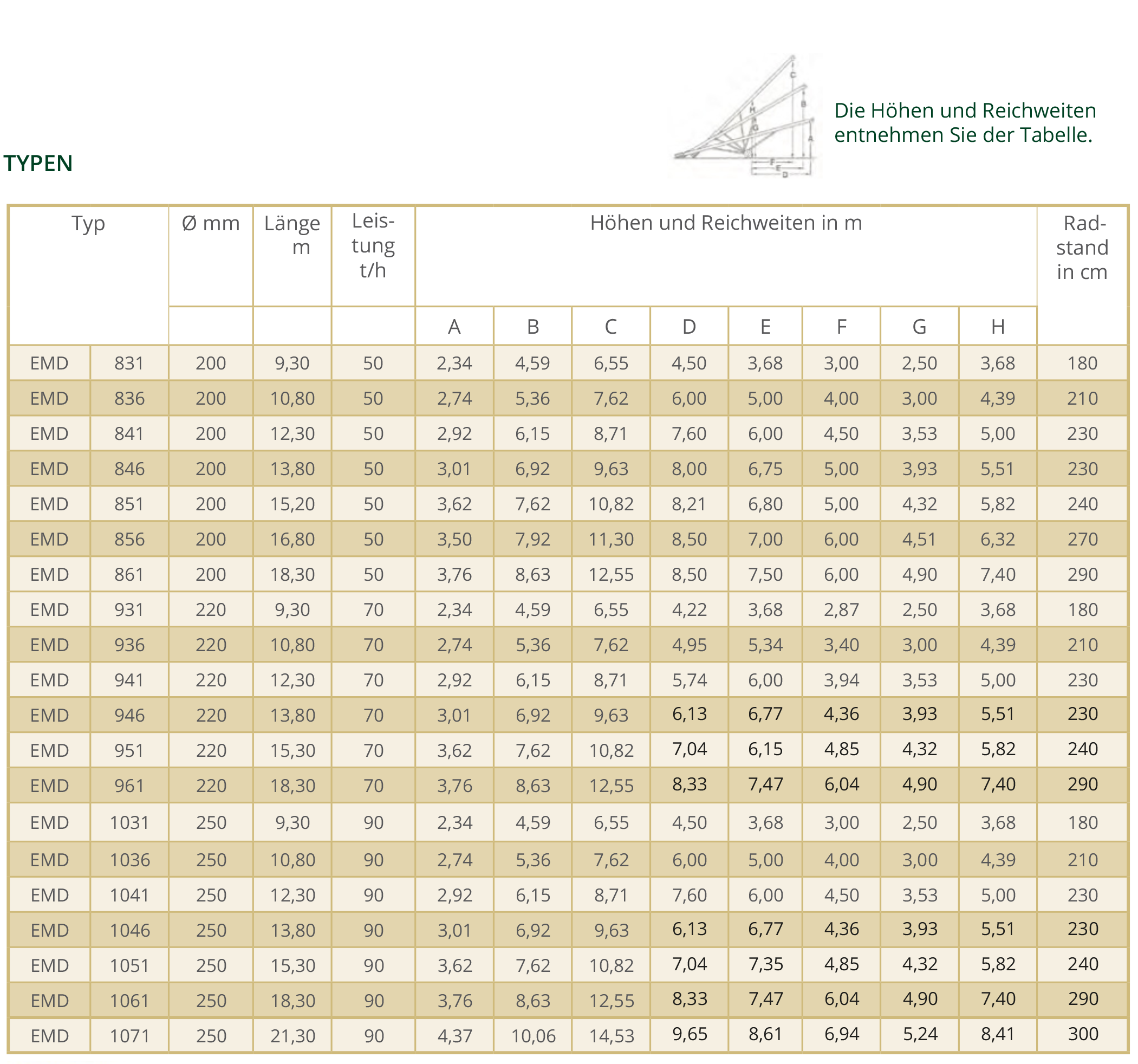

Technical data

  • Production capacity: from 35 t/h to 100 t/h

  • Pipe lengths: from 7.80 m to 21.30 m

  • Conveyor heights: up to 14.50 m

  • Special unit

Properties

Robust chassis

  • particularly suitable for flexible, powerful, and inter-company use

  • plenty of free space in the catchment and discharge area

  • Reset chassis – more protrusion for optimal feeding of flat bearings

  • All devices can be continuously adjusted at the conveying height via a robust winch


The right drive for every operation

  • Electric motor, two-stage electric motor, power take-off shaft, hydraulic motor, combined drive: electric & hydraulic motor


Robust chassis and differentiated torque transmission


Power is transmitted from the electric motor to the bevel gear via large-dimensioned pulleys. From there, the torque is transferred to the screw head via a drive shaft and then to the screw conveyor via offset sprocket.
The torque is thus repeatedly reduced and brought to the screw conveyor. This type of drive allows for a drive unit in the lower third of the worm tube. The advantages are a greater effective protrusion from the wheel to the run-out, good weight compensation/handling, plenty of clearance in the intake and exhaust areas, and an optimal speed range of 450 rpm.

Image description text
Image description text

Downloads

Download and discover the brochure for the high-performance screw conveyors with chassis now.

Image description text
Image description text
Image description text
Image description text
Image description text
Image description text

Dosing screw

The Dualine represents a world premiere: A robust screw conveyor with a quickly removable dosing unit enables seamless „pour-pickling conveying“ without additional equipment for the first time...

Image description text

Feed screw

Simply shunting to the inlet of the following devices shortens the unloading process. Thanks to the lightweight chassis and the rollers on the inlet hopper, the feed screw can be easily swiveled towards the trailer, easily moved, and is effortless to handle by one person. Feed screws are frequently used in confined spaces, e.g. in driveways.

Image description text

Mobile screw conveyors with lightweight chassis

The mobile screw conveyors are of the same design as a standard screw conveyor with a motor mounted on the outlet side. They are additionally equipped with a simple chassis for internal use, e.g. for feeding fertilizer spreaders or seed drills from the yard.
