Column ventilation

The proven CANAGRO column ventilation system has made a name for itself in practice as an extremely robust, price-attractive, easy-to-use and flexible ventilation system.

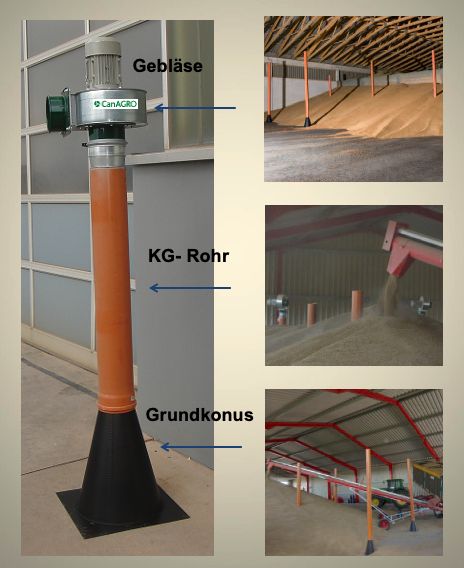

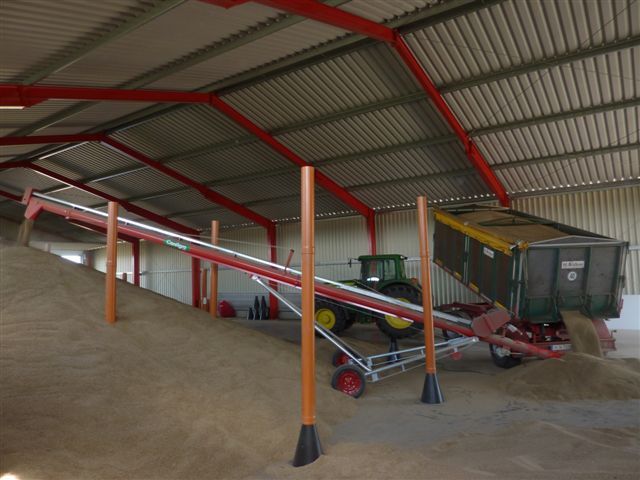

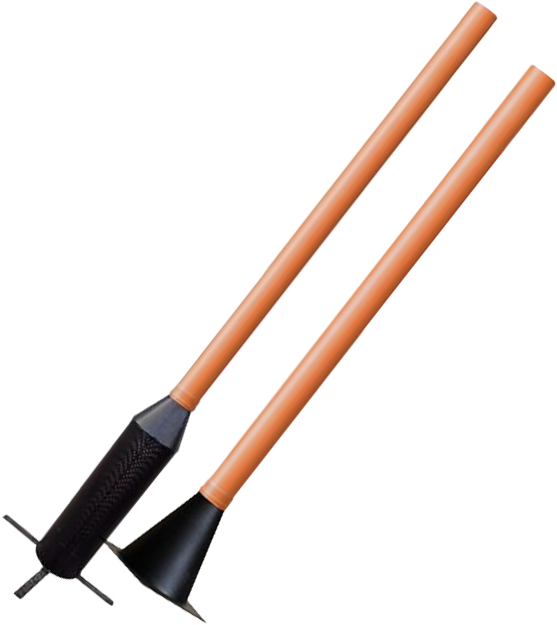

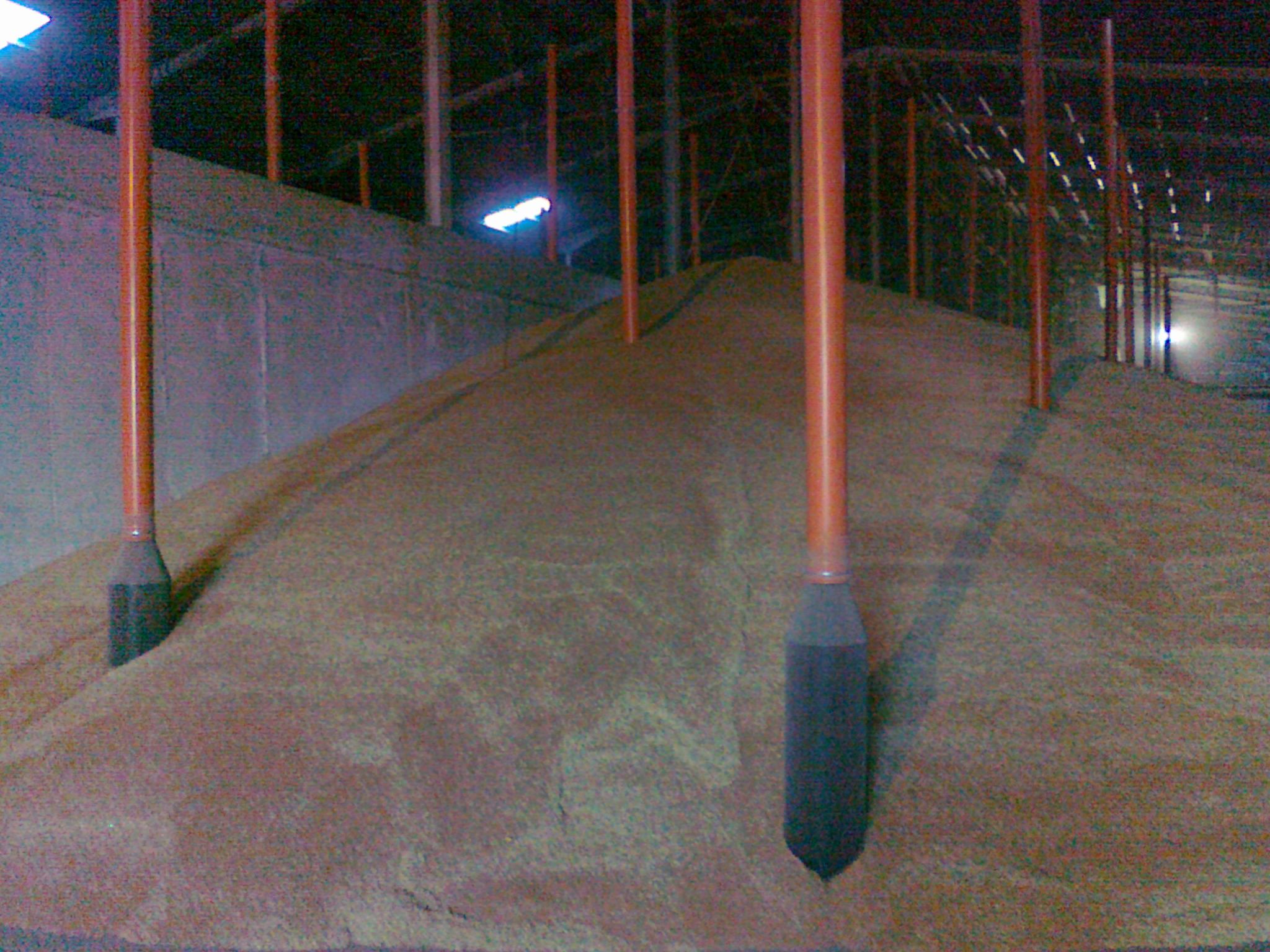

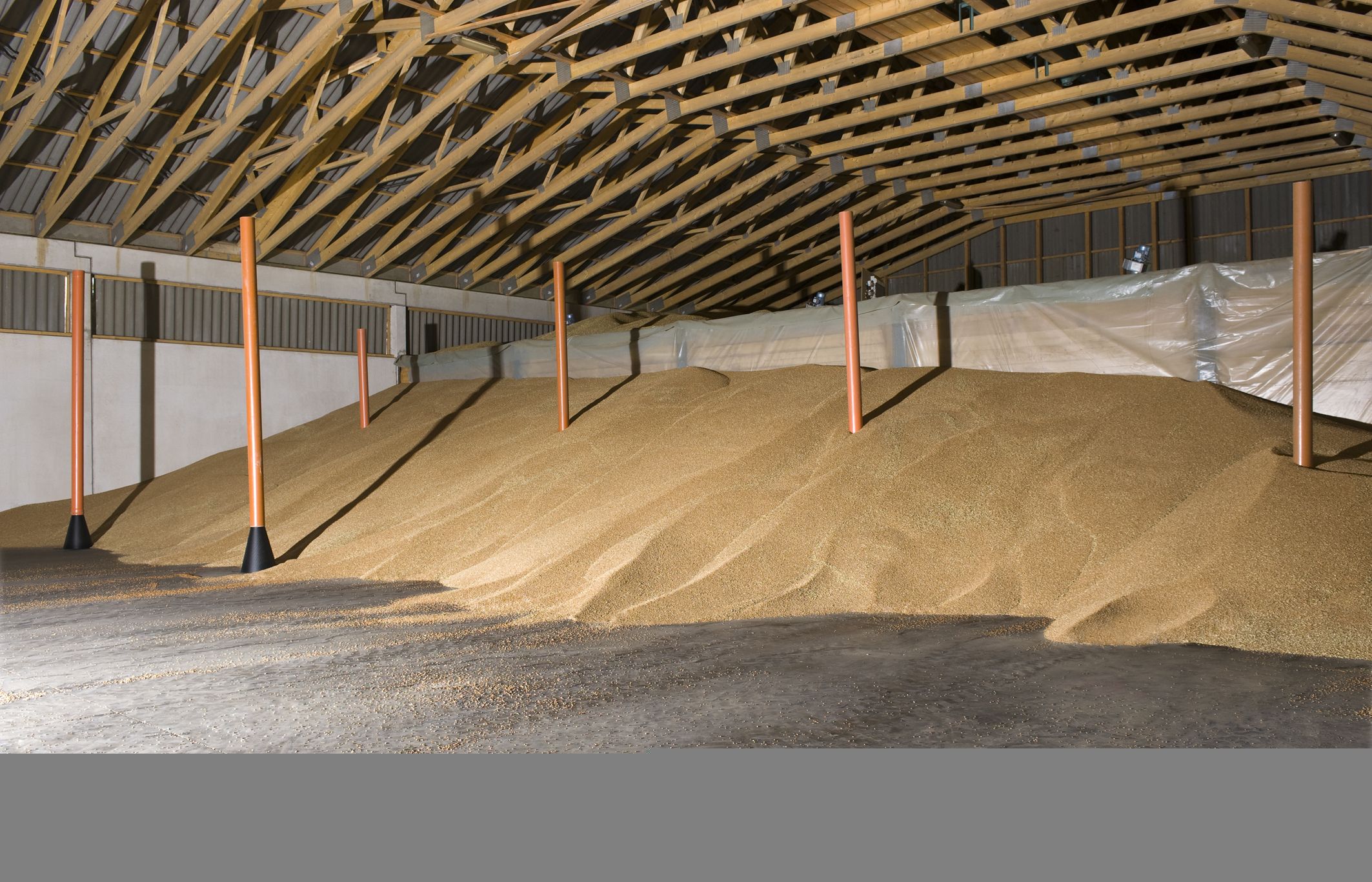

In the CANAGRO column ventilation system, perforated base cones are placed in the grain storage area before the grain is stored, without modifications or expensive adjustments, and extended to the respective fill height using KG pipes. The columns are erected at a distance of 4–5 m.

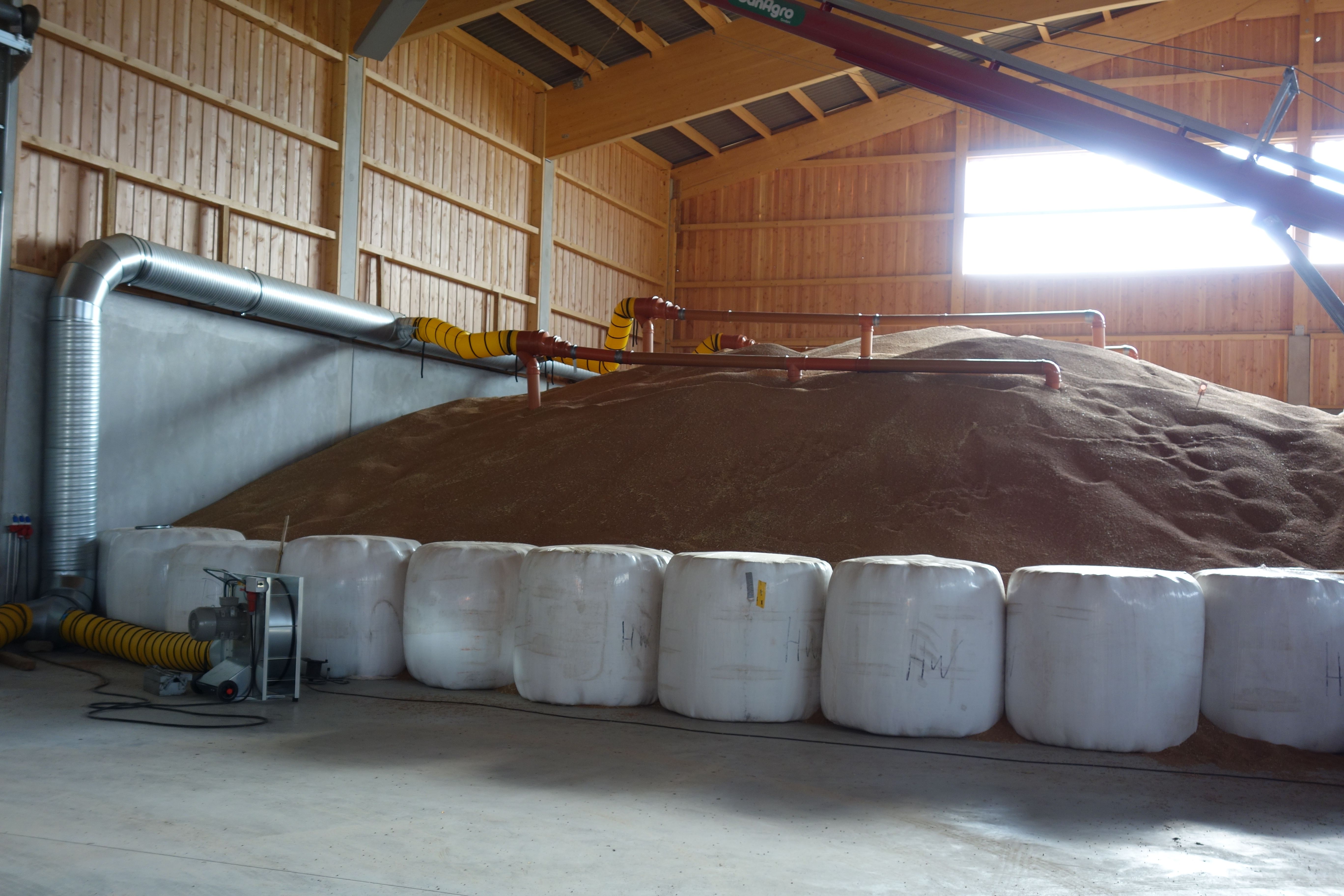

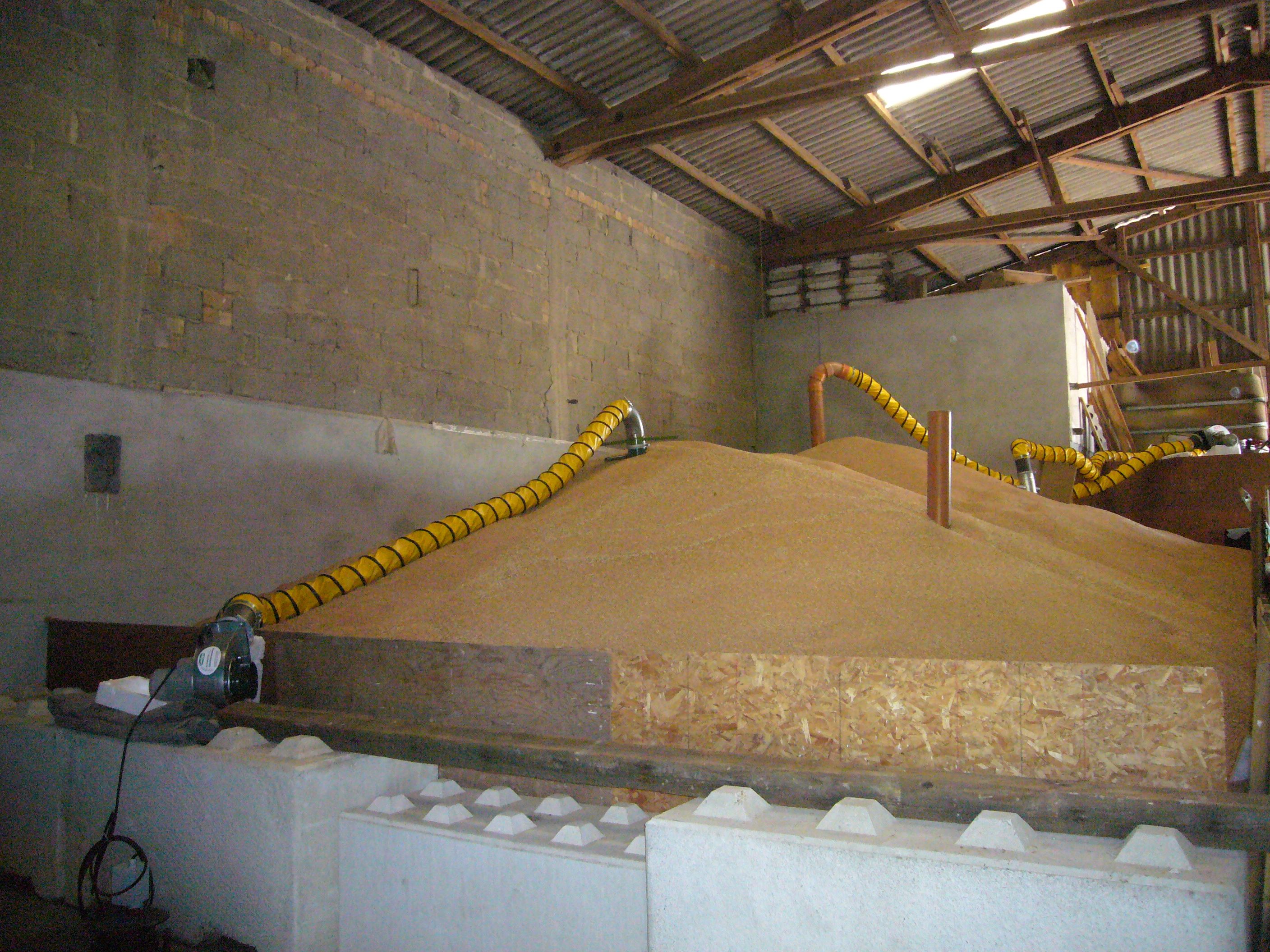

For ventilation, 1.45 kW blowers are implemented as standard and alternatively 2.2 kW blowers are installed on the columns for greater flow heights. The system can also be used to ventilate partial areas and smaller storage rooms. You decide for yourself – should the air be forced into the grain stack or sucked out?

Our customers appreciate that the visibility of the columns eliminates the associated costs due to damage during outsourcing, as is often the case with constructed armored top channels or ventilation with drainage pipes.

The system can be flexibly expanded as needed and is compatible with the blowers of farmers who already have a ventilation rocket in use.

This well-designed construction allows for trouble-free reuse and makes column ventilation the economical solution for businesses that value uncomplicated but reliable ventilation technology. Easy to install, flexible to use and gentle to remove.
