Underfloor ventilation

Image description text

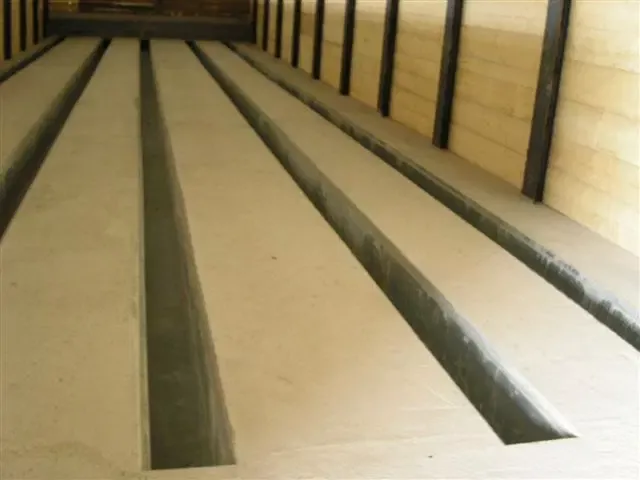

CANAGRO underfloor ventilation ensures a uniform and efficient air supply directly from below into the stored bulk material. This system is firmly integrated into the storage floor, enabling gentle drying and the prevention of moisture and mold growth. Durable, low-maintenance and optimally adaptable to different bearing sizes.

Underfloor ventilation

Proper storage of grain, rapeseed or grass seeds - underground ventilation

This system allows the warehouse to be ventilated with very high amounts of air. The underfloor ventilation is also suitable for rapeseed and grass seeds. The system is made of galvanized sheet steel and is suitable for concreting.

Technical data

  • Width: 300 mm

  • Cover lengths: 0.5 m, 1 m

  • Air ducts as lost formwork made of 1.5 mm

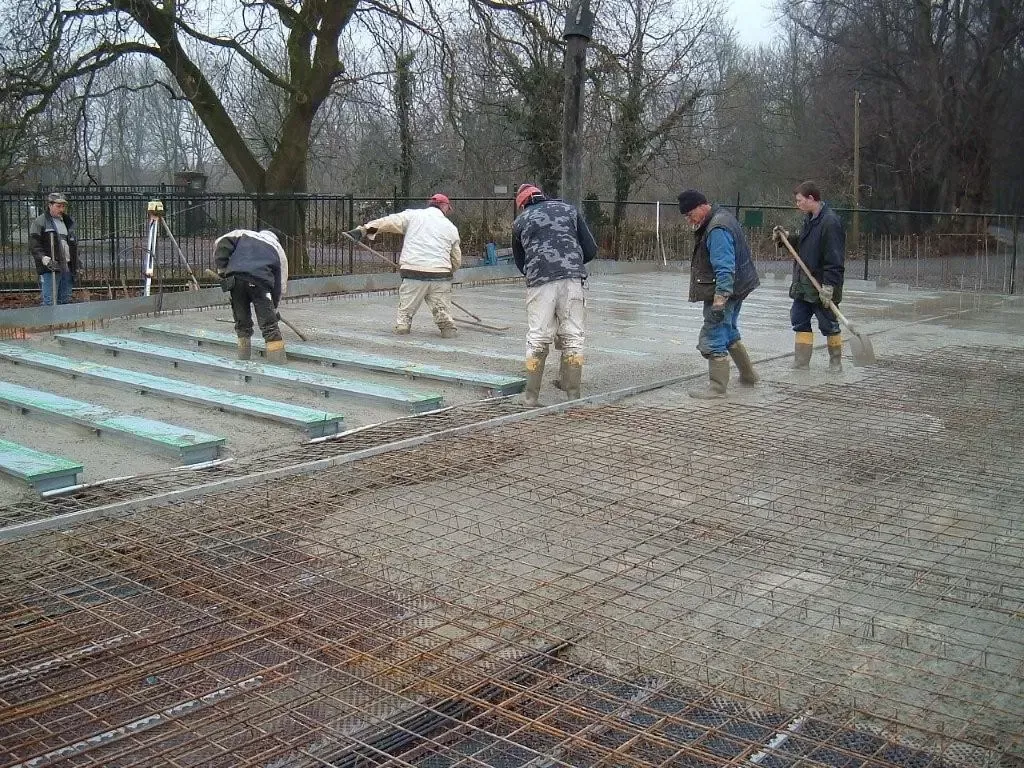

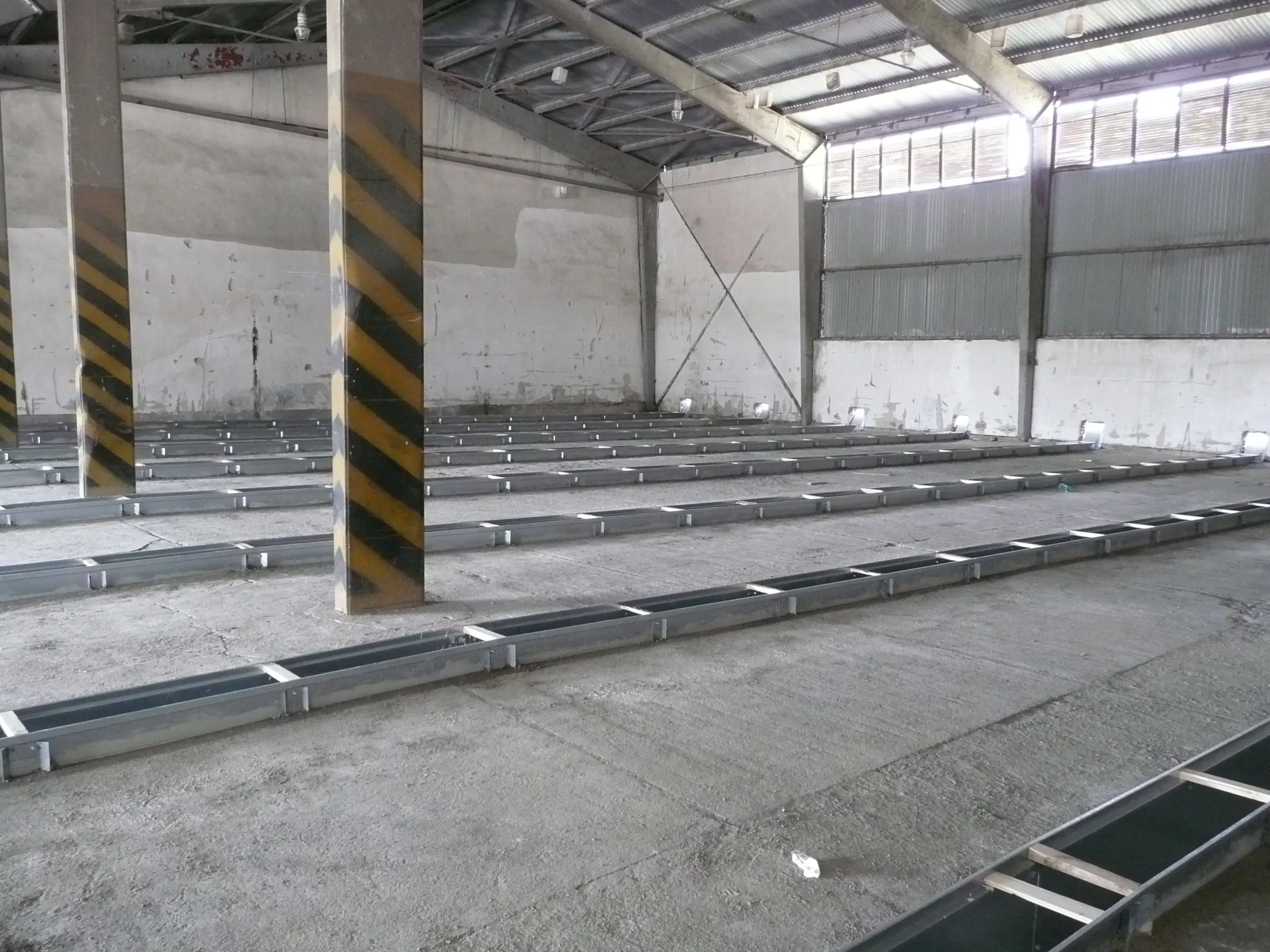

Lost sheet steel formwork for concreting

  • Length: 0.5 m, 1 m, 2 m

  • galvanized steel sheet, thickness 1.5 mm

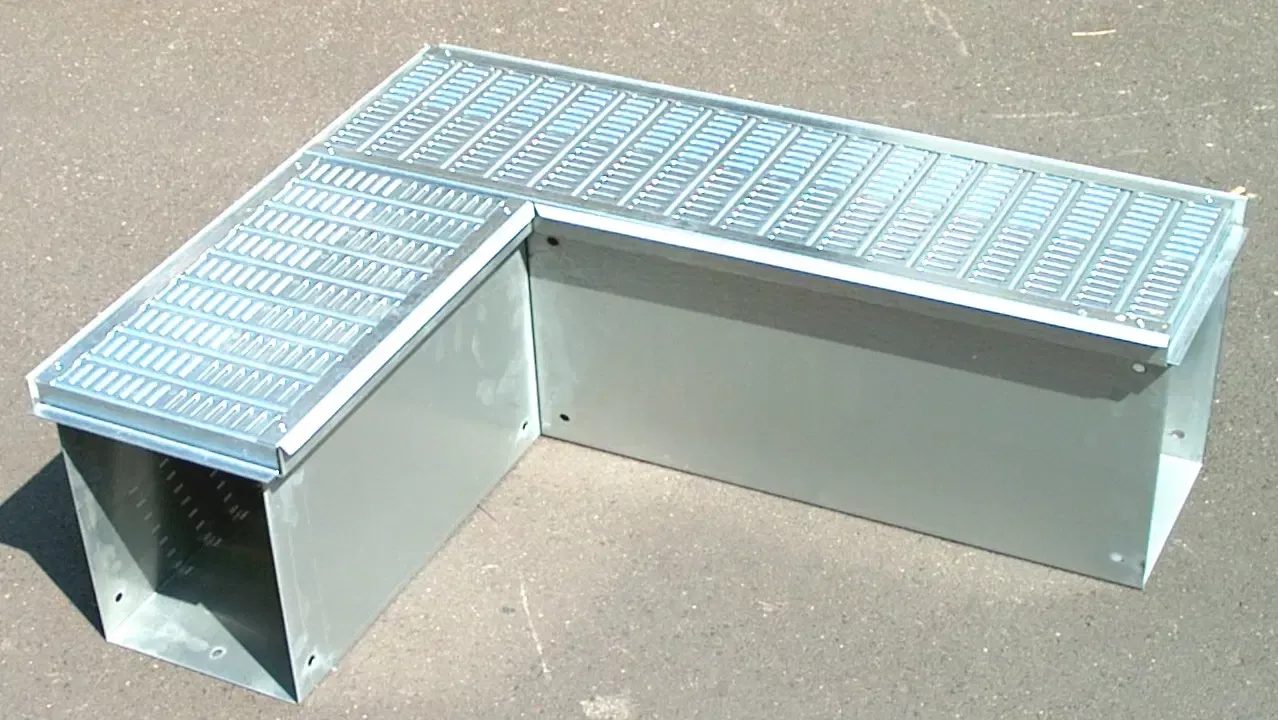

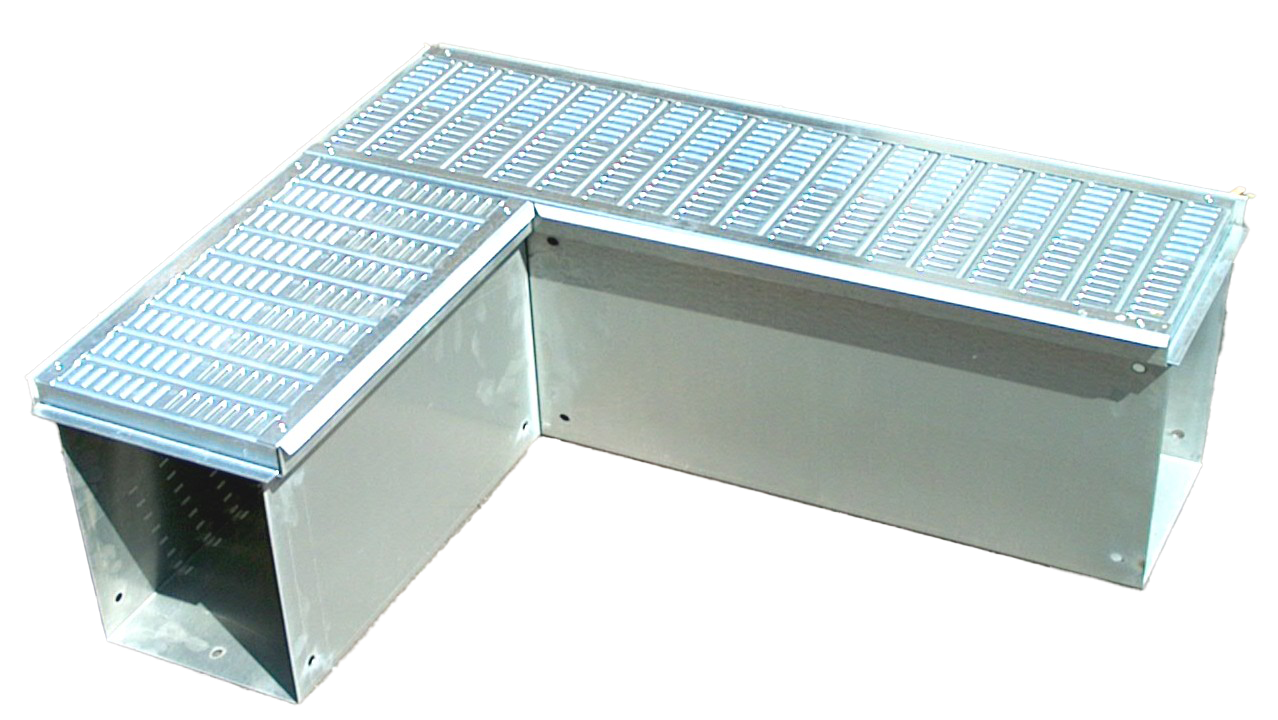

  • Air duct fittings in L, Y, T and double-T versions


Perforated sheet metal cover for lost formwork

  • drivable with max. wheel load 7 t

  • compatible with slotted hole cover

  • no edges in the upper area

  • Air outlet area: approx. 22%


Slotted hole cover for lost formwork

  • Accessible with max. Wheel load 7 t

  • compatible with
    Perforated sheet metal cover

  • Air outlet area: approx. 11%

Image description text
