CANAGRO feed screws

Image description text

Our robust feed screws ensure reliable and efficient material transport in your production facilities. With an impressive conveying capacity of 50 to 100 tons per hour and a diameter of 200 to 250 mm, these screw conveyors can easily handle even the most demanding transport tasks.

CANAGRO feed screws

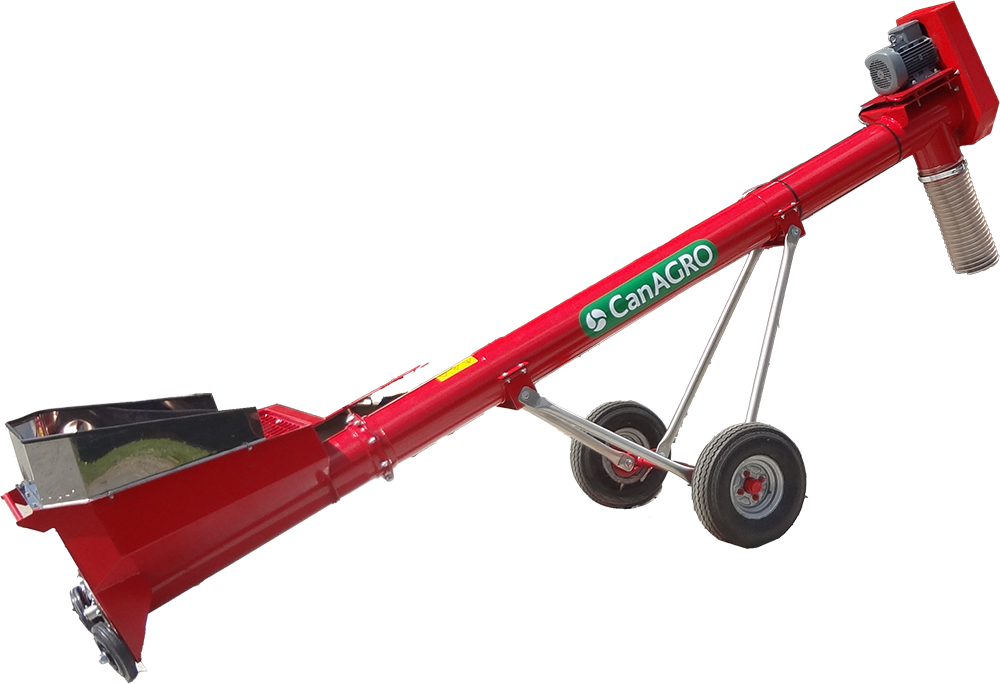

The flexible feeder screw

Simply shunting to the inlet of the following devices shortens the unloading process. Thanks to the lightweight chassis and the rollers on the inlet hopper, the feed screw can be easily swiveled towards the trailer, easily moved, and is effortless to handle by one person. Feed screws are frequently used in confined spaces, e.g. in driveways.

In low buildings where it is not possible to tip off the trailer or truck, the feed screw can be used as an external feeder, as an additional flexible receiving device, as an elevator, or for feeding onto grain sumps.


Whether in an angled design for space-saving installations or with variable hopper lengths from 1.2 m to 3 m for optimal adaptation to your spatial conditions – our feed screws offer the flexibility and performance that modern industrial operations require.

Technical data

  • Conveyor length: 3–5 m

  • Tube diameter: 200mm (50 t/h), 250mm (80-100t/h)

  • Design: Steel / Stainless steel

  • Standard version: straight, with inlet funnel (1.0 x 0.8 m)

  • Special version: angled version with receiving funnel 1.20-3 m

Image description text

Download catalog

Image description text
Image description text
Image description text
Image description text
Image description text
Image description text
Image description text

Dosing screw

The Dualine represents a world premiere: A robust screw conveyor with a quickly removable dosing unit enables seamless „pour-pickling conveying“ without additional equipment for the first time...

Image description text

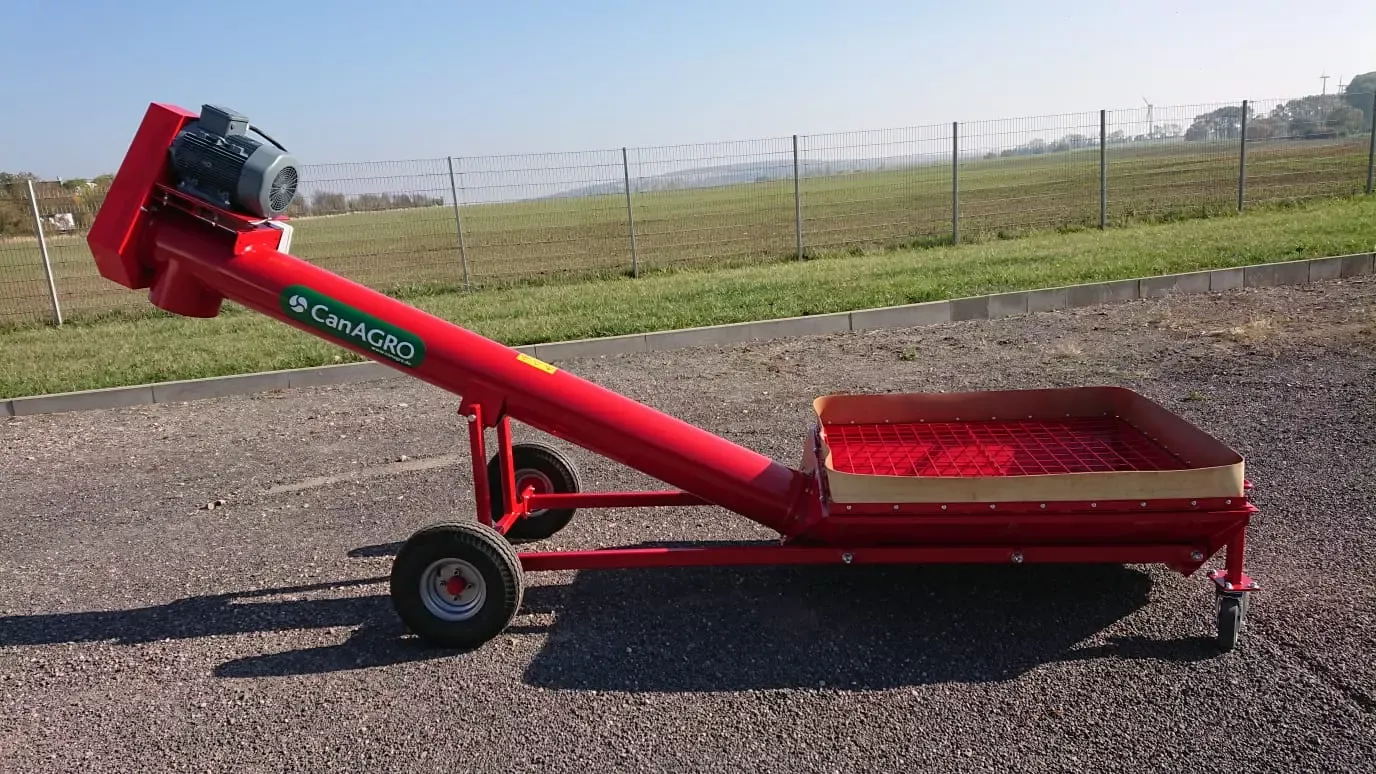

Mobile screw conveyors with lightweight chassis

The mobile screw conveyors are of the same design as a standard screw conveyor with a motor mounted on the outlet side. They are additionally equipped with a simple chassis for internal use, e.g. for feeding fertilizer spreaders or seed drills from the yard.

Image description text

High-performance screw conveyors with chassis

Our high-performance EMD series screw conveyors are the perfect solution for the flexible and efficient transport of bulk materials. As a specialist in mobile conveying technology, we have continuously developed our screw conveyors and adapted them to the requirements of the German market.
