DUALINE Pickling Unit
Future without conditions - Additives for your seeds
Compared to conventional retrofit kits or separate systems, there is no need for any conversion, transshipment and additional space requirements. With its modular design and integrated dosing control, it guarantees constant active ingredient distribution along the entire grain stream and prevents errors caused by retrofitting and modifications. The Dualine is designed as a fully integrated unit and flexibly adapts to various farm situations - from seed processing to transport in the mobile cleaner. Its intuitive operation reduces downtime and familiarization times.
The perfect snail for demanding crop production.
Technical details

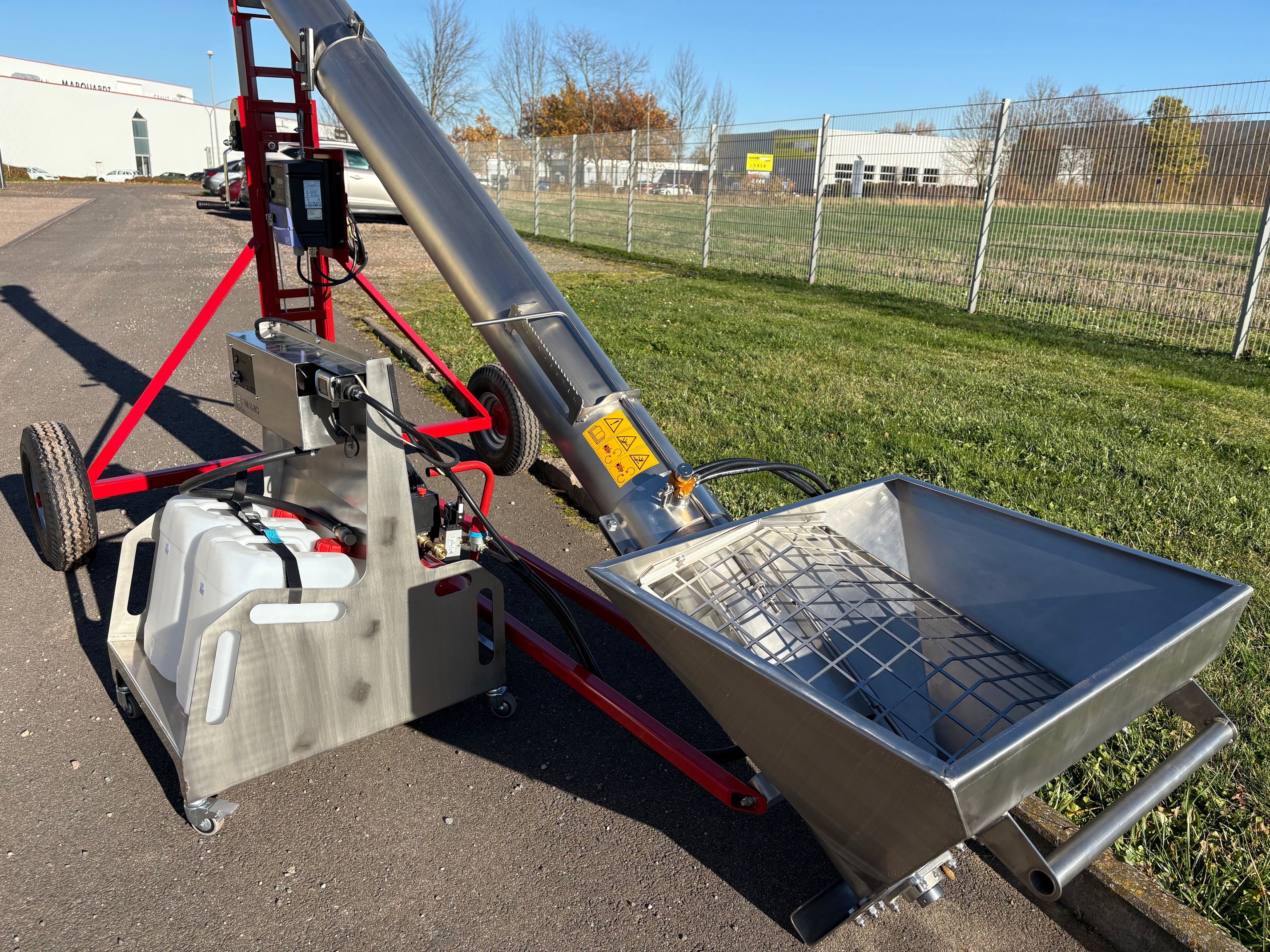

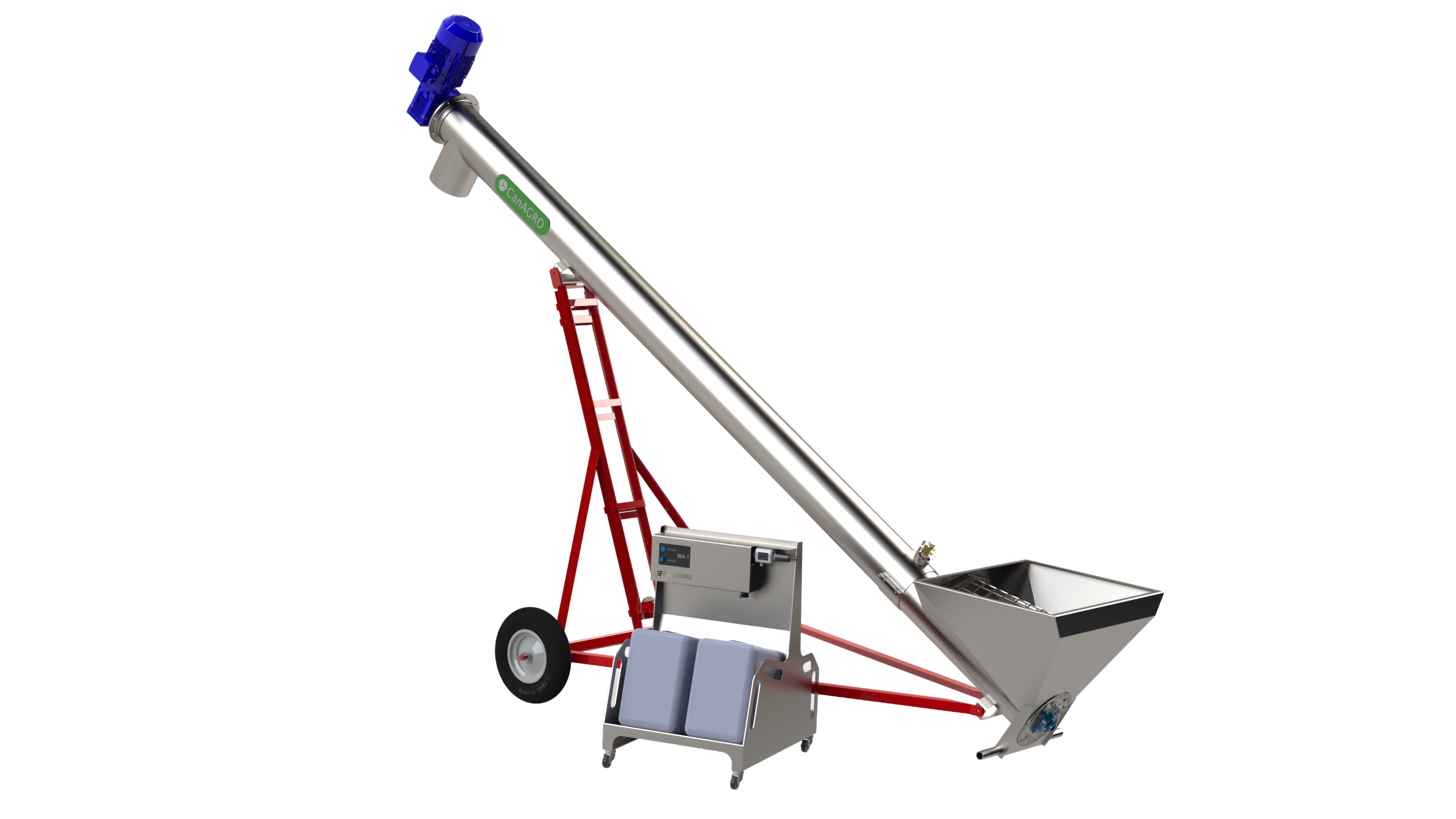

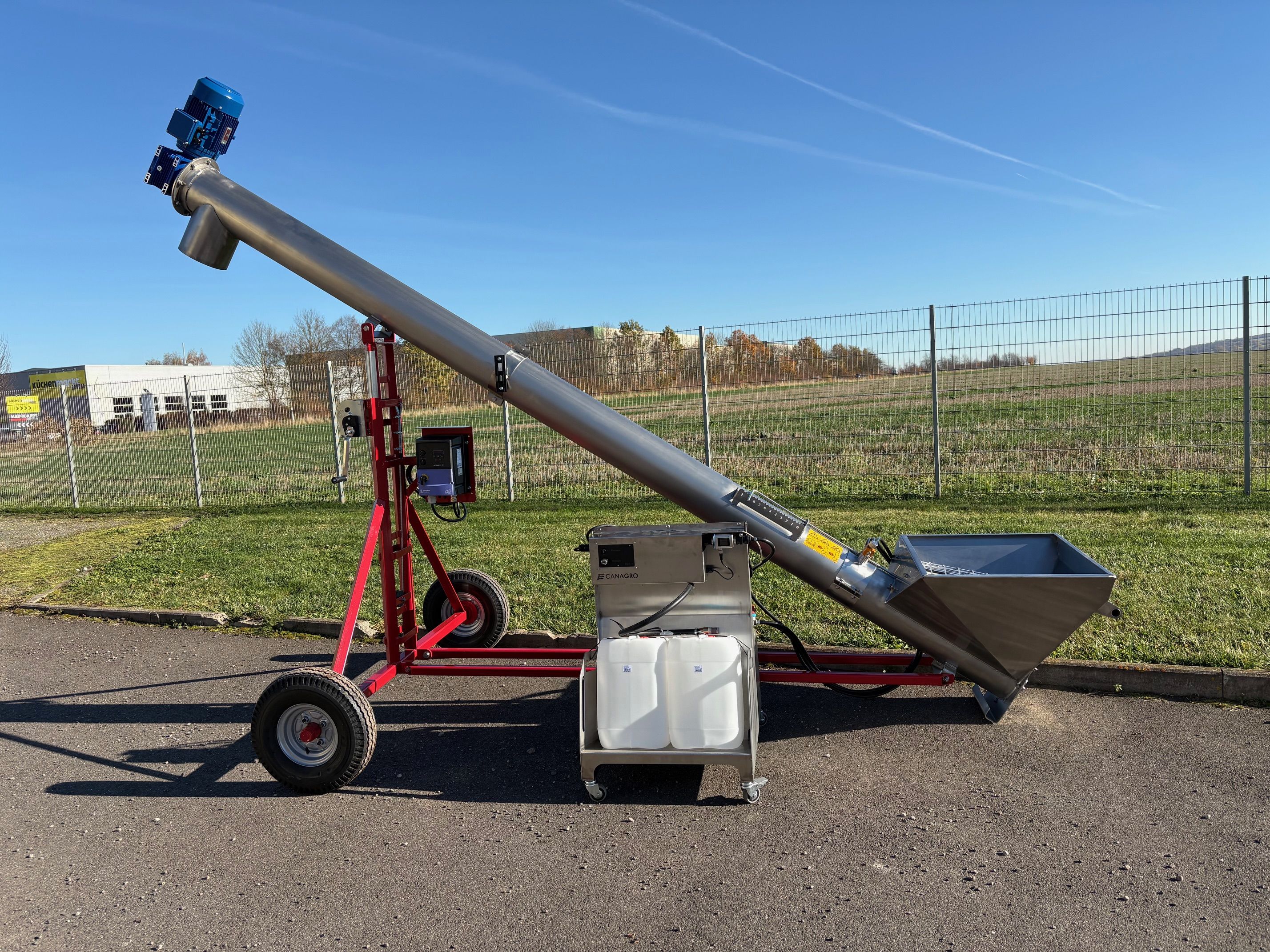

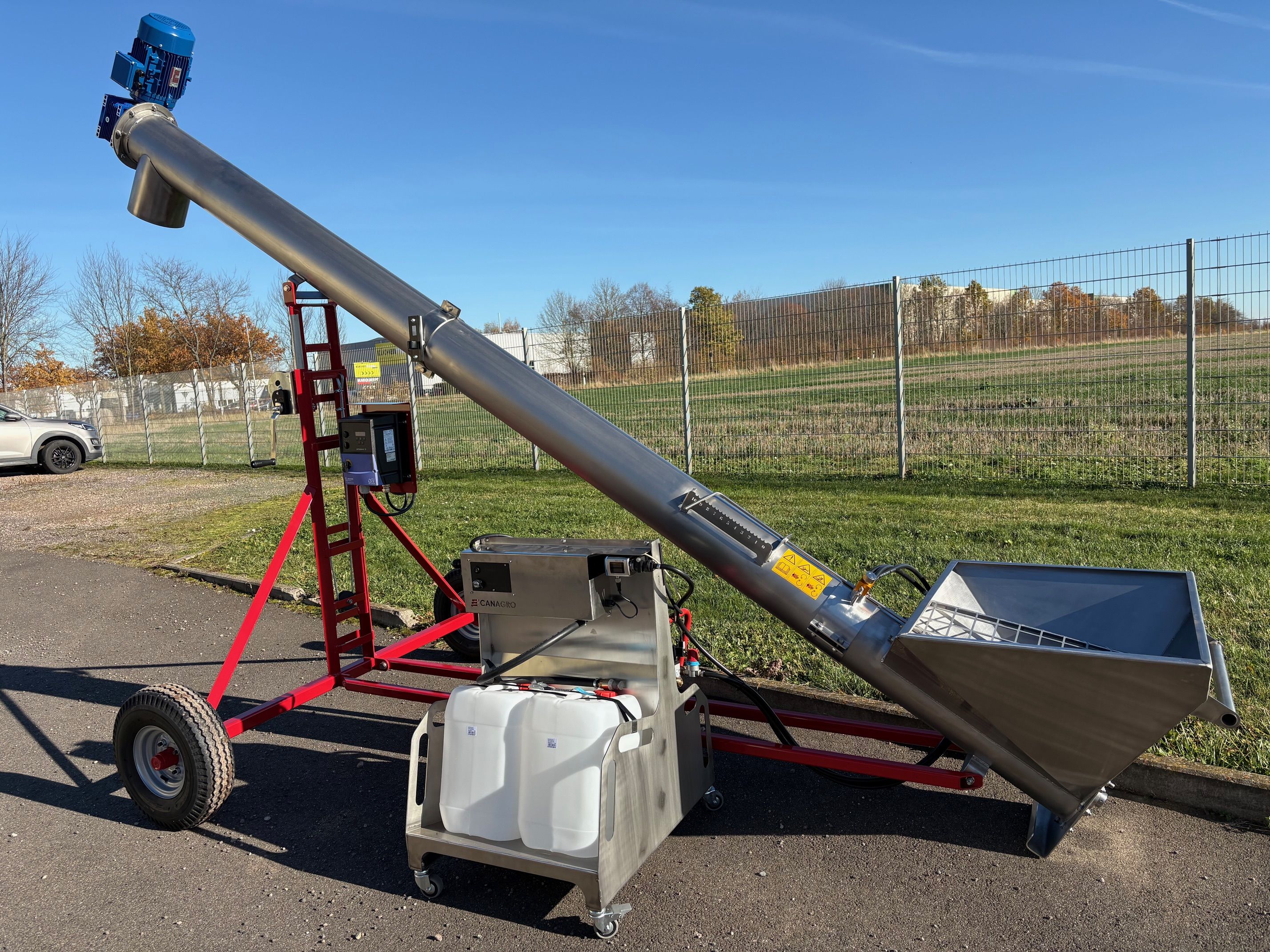

Screw conveyor with integrated, removable dosing unit

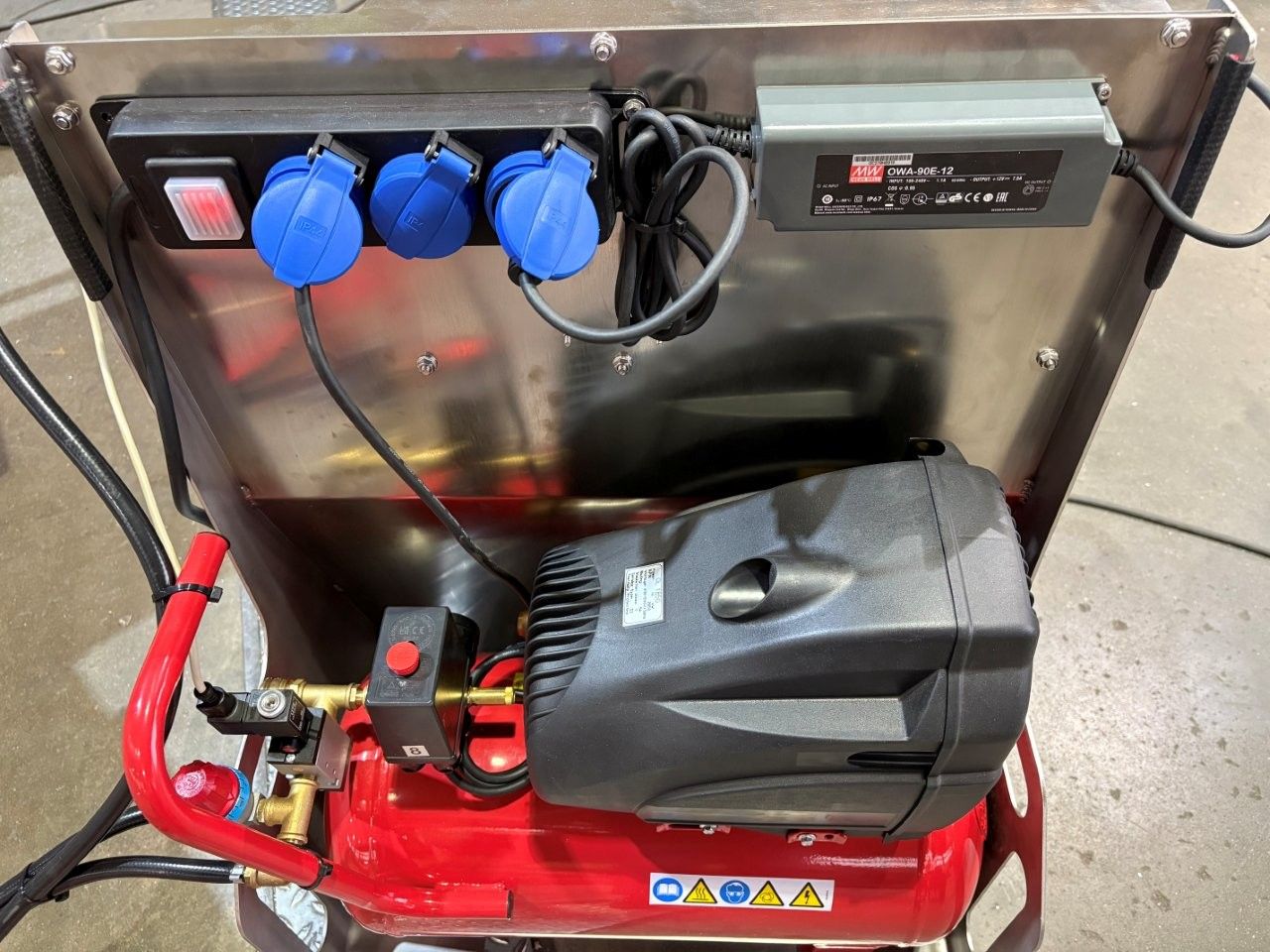

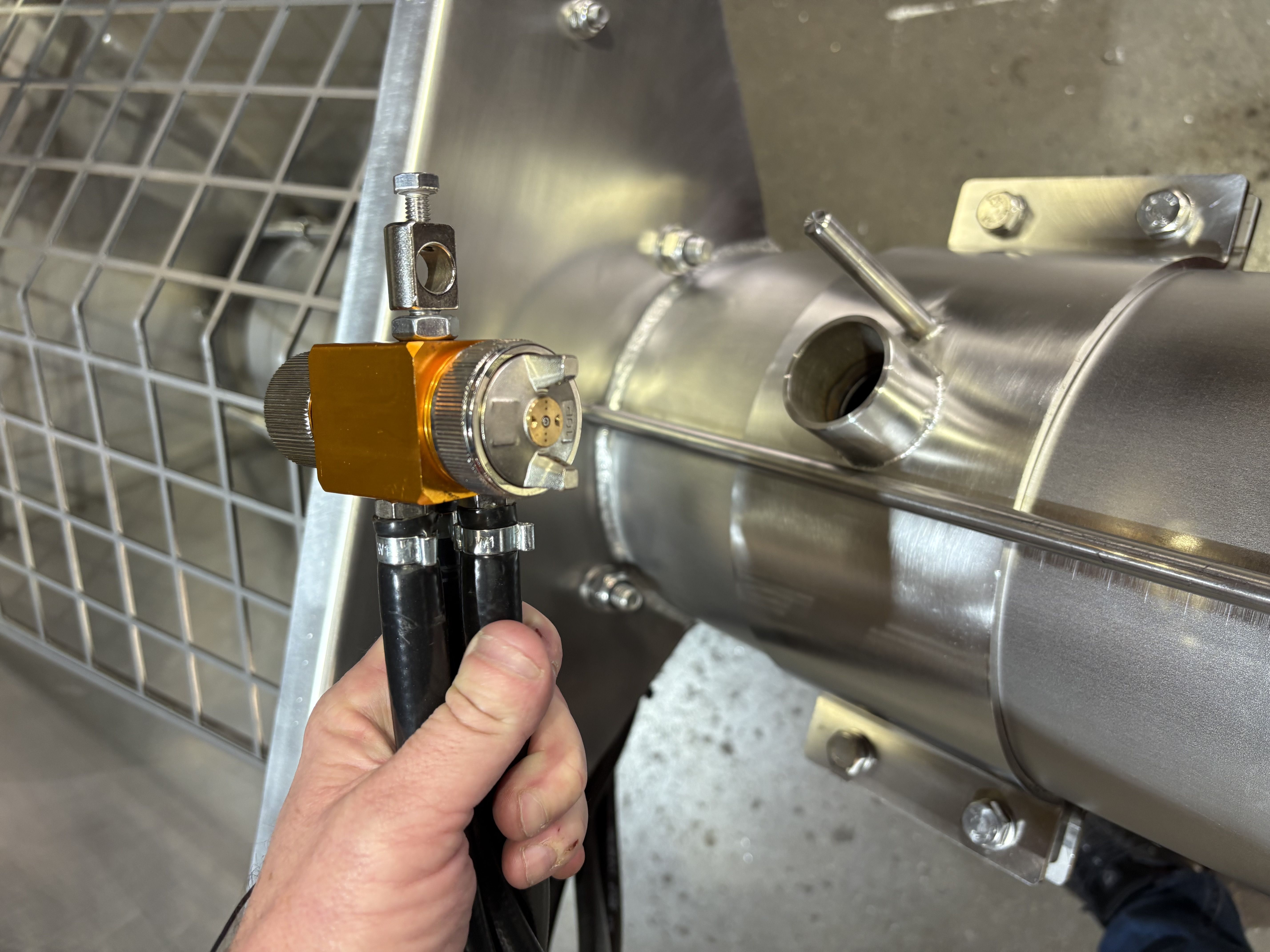

Precise dosing & uniform material application via compressed air
Gentle transport of grain, legumes & fine seeds
Dosing unit can also be retrofitted to existing screw conveyors
The combination function eliminates the need for separate conveying and pickling stations

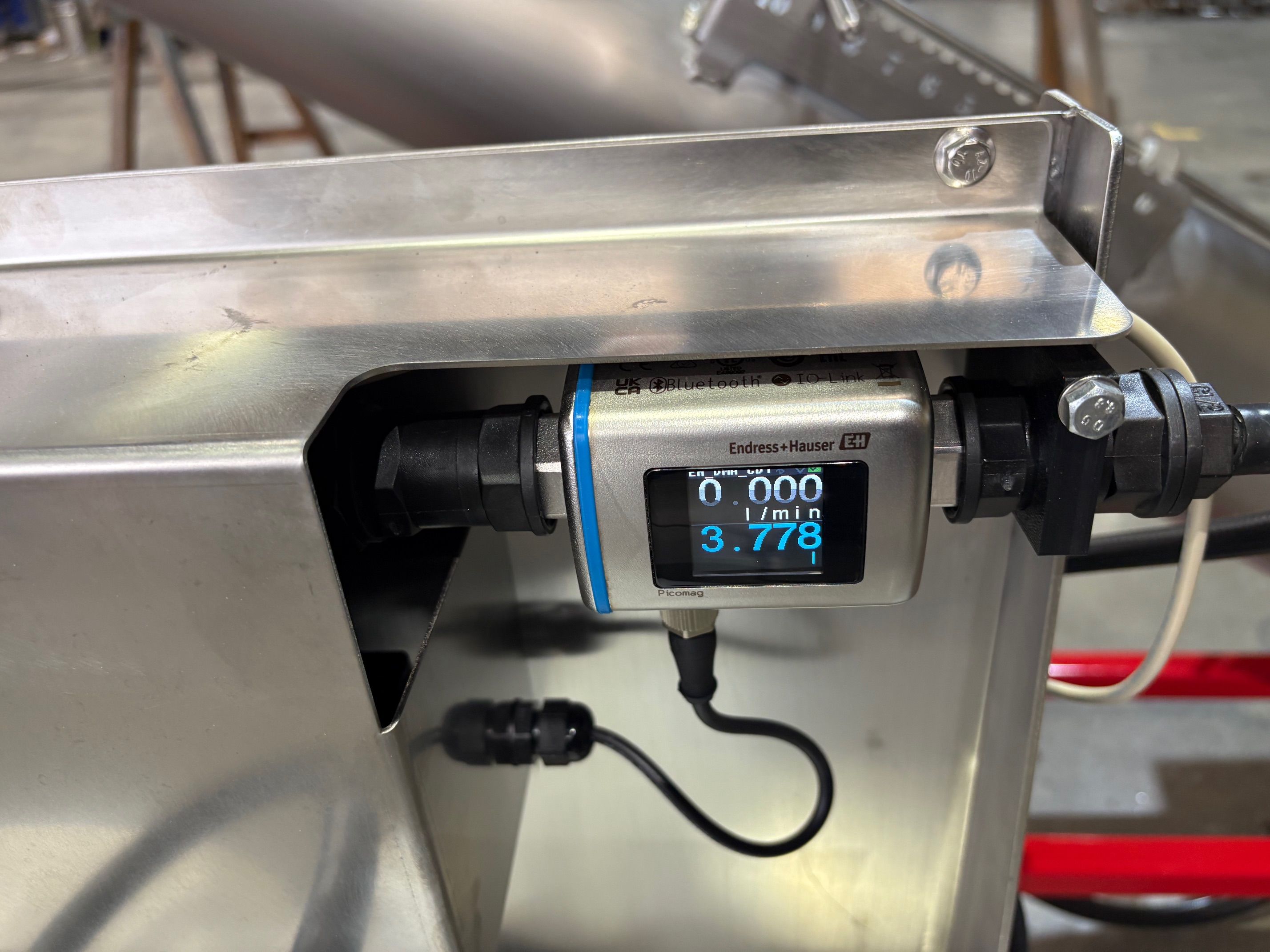

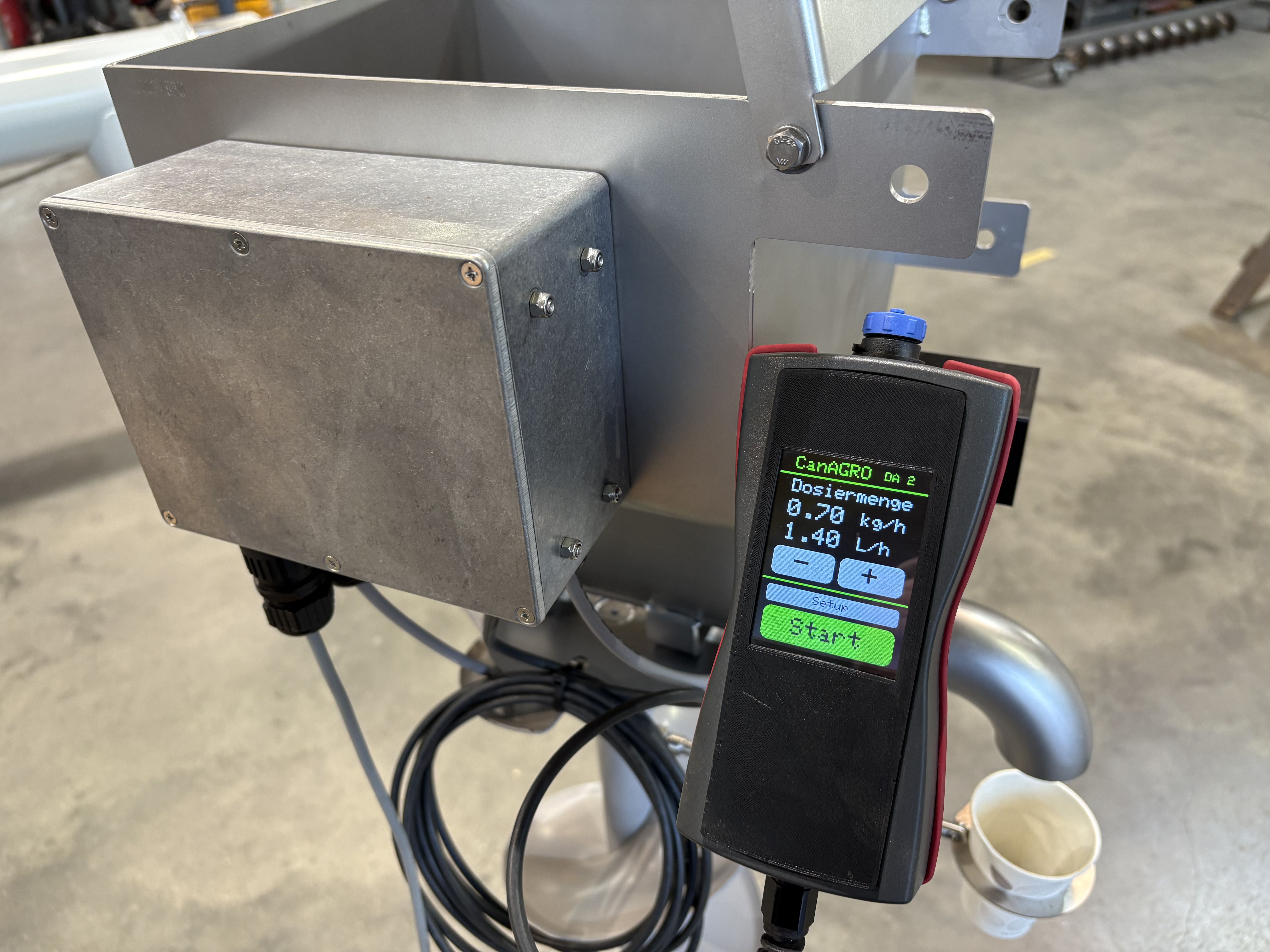

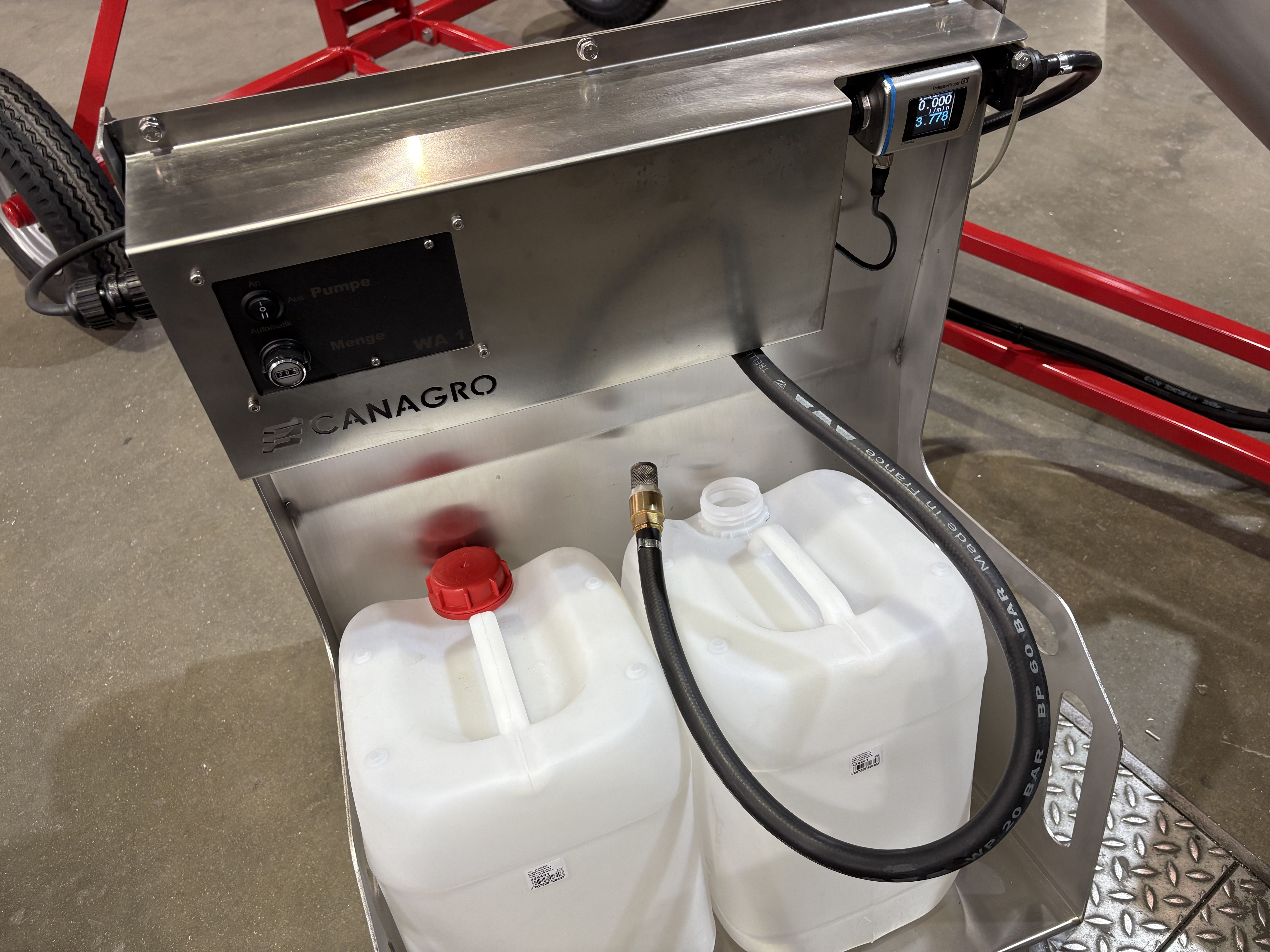

The integrated dosing pump delivers dosing accuracies of ±1% from 100 ml of stain per ton of seed
At variable throughput rates of 6 to 35 t/h, the DUALINE ensures constant, uninterrupted grain flow without transshipment operations or setup pauses
Thanks to the homogeneous coating, the consumption of mordant can be reduced by up to 20%, while the germination rate increases by 5–10%
-
In practice, farmers save up to 30% on working time by eliminating separate pickling and conveying routines and reduce the land requirement on the farm by 40%
